This model is discontinued
AirTAC has phased out the MAL series. The drop-in replacement is ACEJ12X50-20 — same bore, stroke, output force, port and mounting, so it fits the same application. Simply order the ACEJ12X50-20 in place of this model. The ACE replacement is a current-production ISO 21287 compact cylinder in the same bore, stroke and force class, with a matching short body and the same mounting-accessory family, so it fits the same envelope. Confirm mounting-interface dimensions against the ACE datasheet before ordering.

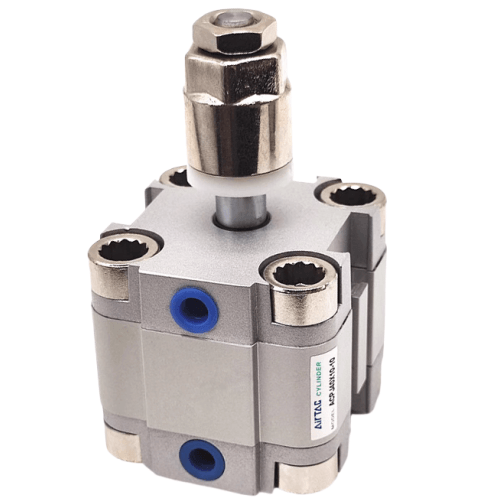

Airtac ACPJ Adjustable Compact Cylinder ACPJ12X50-20
The AirTAC Airtac ACPJ Adjustable Compact Cylinder ACPJ12X50-20 is a double acting, adjustable stroke DIN-standard tight/compact air cylinder with a Ø12mm bore and 50mm stroke, M5×0.8 air ports and a hard-anodized aluminium body. This model is discontinued — the current-production replacement is the ACEJ12X50-20 (ISO 21287 ACE), in the same bore, stroke and force class.
- BoreØ12 mm
- Stroke50 mm
- Port sizeM5×0.8
- Acting typeDouble acting, adjustable stroke
- Rod threadM3×0.5
- StatusDiscontinued → ACEJ12X50-20
About the Airtac ACPJ Adjustable Compact Cylinder ACPJ12X50-20
The ACPJ12X50-20 is a double acting compact cylinder with an adjustable extend stroke: the -20 stop screw trims the 50 mm stroke by up to 20 mm on site, giving a usable range of 30-50 mm. At the 12 mm bore it delivers 56.5 N push and 42.4 N pull at 0.5 MPa, rising to 79.2 N push at 0.7 MPa, with a theoretical peak of 11.5 kgf at 1.0 MPa. Air supply is 0.15-1.0 MPa (22-145 psi) and rod speed runs 30-500 mm/s.
The short ISO 21287-class body saves roughly 50% of the mounting length of an ISO 15552 profile cylinder, so it slots into slim fixtures and guarding where a full-length body cannot. In practice, plan for about 34 N (roughly 3.5 kg) of real work at 0.5 MPa, and expect it to lift about 2.9 kg vertically with a 2:1 margin. Note the stop screw sets the end position only - it is not a mid-stroke lock, so the rod still drifts if air is lost. This model is discontinued; the current drop-in is ACEJ12X50, and buyers should confirm ISO 21287 mounting dimensions before swapping.
Airtac ACPJ Adjustable Compact Cylinder ACPJ12X50-20 Technical Specifications
| Model | Airtac ACPJ Adjustable Compact Cylinder ACPJ12X50-20 |
|---|---|
| Series | ACPJ DIN compact cylinder (discontinued) |
| Replacement | ACEJ12X50-20 |
| Bore size | Ø12 mm |
| Stroke | 50 mm |
| Acting type | Double acting, adjustable stroke |
| Port size | M5×0.8 |
| Rod thread | M3×0.5 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 500 mm/s |
| Cushion | Fixed bumper (both ends) |
| Max standard stroke | Up to 50 mm |
Specifications follow the official AirTAC ACP datasheet (now discontinued). The ACEJ12X50-20 (ISO 21287) carries the same bore/stroke/force class; confirm mounting-interface dimensions against the ACE datasheet before installation. Rod type: female thread (blank) or male thread (B). Thread options: PT (blank) / G.
Theoretical Output Force (Ø12mm)
| Pressure | Push force | Pull force |
|---|---|---|
| 0.5 MPa | 57 N | 42 N |
| 0.7 MPa | 79 N | 59 N |
| Max (@1.0 MPa) | 12 kgf | |
The ACEJ12X50-20 produces the same force from the same bore. Actual usable force is lower than theoretical; size with a margin.
Model Code: Airtac ACPJ Adjustable Compact Cylinder ACPJ12X50-20
| ACPJ | DIN compact cylinder (adjustable-stroke, discontinued). |
|---|---|
| 12 | Bore size in mm. |
| ×50 | Stroke length in mm. |
| -20 | Adjustable stroke window (mm the extend stroke can be shortened on site). |
| S | Optional built-in magnet for sensor position sensing (omit for no magnet). |
| B | Rod type: B = male thread; blank = female thread. |
Replacement mapping (swap P for E): ACP→ACE, ASP→ASE, ATP→ATE, ACPD→ACED, ACPJ→ACEJ. ACP-family: ACP (double acting), ASP / ATP (single acting push / pull), ACPD (double rod), ACPJ (adjustable stroke).
Where the Airtac ACPJ Adjustable Compact Cylinder ACPJ12X50-20 Is Used
Small-part ejection on assembly benches
Trims the extend stroke between 30 and 50 mm to nudge finished 2-3 kg components off a jig without overtravel, using about 34 N of usable push force at 0.5 MPa.
Compact gating on packaging lines
The short body fits inside tight guarding; add the optional -S magnet code if CMSE or DMSE switch feedback is needed later - without -S no magnet is fitted.
Light hold-down in electronics fixtures
Clamps PCB carriers or connector housings with 42.4 N of pull force at 0.5 MPa on retract, mounted via LB foot in a slim test fixture.
Replacing the Airtac ACPJ Adjustable Compact Cylinder ACPJ12X50-20 with the ACEJ12X50-20
At 56.5 N push (0.5 MPa) this 12 mm bore suits light clamping and positioning; step down is not available in this family, while the 16 mm bore gives 100.5 N push if you need nearly double the force. The 20 mm adjustment window fits jobs where the final extend position is tuned during commissioning. FA/FB flange and LB foot mountings bolt to the ISO 21287 face, and rod-end knuckles attach to the female M3x0.5 thread. This unit is discontinued - order ACEJ12X50 as the current-production equivalent and verify mounting dimensions.
Replacement checklist
- ✓ Current-production ACE → ACEJ12X50-20
- ✓ Same bore / stroke / force class
- ✓ Confirm ISO 21287 mounting dimensions
- ✓ Port/thread type (PT / G)
- ✓ Add -S for magnet if you need sensors
Airtac ACPJ Adjustable Compact Cylinder ACPJ12X50-20 FAQ
At 0.5 MPa it pushes with 56.5 N and pulls with 42.4 N; at 0.7 MPa those rise to 79.2 N push and 59.4 N pull. The theoretical maximum is 11.5 kgf at 1.0 MPa. Operating pressure is 0.15-1.0 MPa (22-145 psi), proof pressure 1.5 MPa (215 psi), and speed 30-500 mm/s. The -20 stop screw shortens the 50 mm extend stroke by up to 20 mm, so the working range is 30-50 mm.
An external stop screw on the head limits rod extension anywhere within the ordered 20 mm window, so you can dial the extend stroke down from 50 mm to as little as 30 mm during setup. It sets the end position only and does not hold a load if air is lost. The ACPJ family is discontinued; ACEJ12X50 is the current ISO 21287 drop-in with the same bore, stroke and force class - confirm its mounting dimensions before swapping, since the ACP was DIN-standard.
