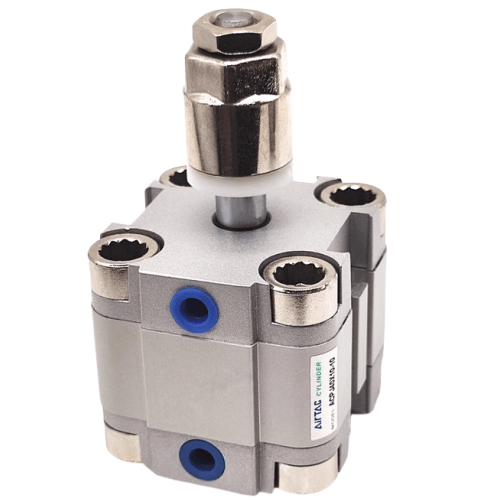

Airtac ACPJ Adjustable Compact Cylinder ACPJ16X200-75S
The AirTAC Airtac ACPJ Adjustable Compact Cylinder ACPJ16X200-75S is a double acting, adjustable stroke DIN-standard tight/compact air cylinder with a Ø16mm bore and 200mm stroke, M5×0.8 air ports and a hard-anodized aluminium body. This model is discontinued — the current-production replacement is the ACEJ16X200-75S (ISO 21287 ACE), in the same bore, stroke and force class.
- BoreØ16 mm
- Stroke200 mm
- Port sizeM5×0.8
- Acting typeDouble acting, adjustable stroke
- Rod threadM4×0.7
- StatusDiscontinued → ACEJ16X200-75S
About the Airtac ACPJ Adjustable Compact Cylinder ACPJ16X200-75S
Double acting with an adjustable stroke, the ACPJ16X200-75S pushes 100.5 N and pulls 75.4 N at 0.5 MPa (140.7 N push at 0.7 MPa) from a 16 mm bore. The -75 code means a stop screw trims the 200 mm extend stroke by up to 75 mm on site, giving a usable 125-200 mm range without changing the cylinder. Note this is a discontinued model; the current-production replacement is the ACEJ16X200 in the same bore, stroke and force class.
The 200 mm stroke is a non-standard, made-to-order length because bore 16 tops out at 75 mm as a standard stroke. The short ISO 21287-class body saves roughly 50% of the mounting length of an ISO 15552 profile cylinder, which matters on a long-stroke part like this: a 200 mm stroke in a full profile body would not fit most compact gantries. This -S version carries the optional magnet, so CMSE or DMSE reed and solid-state switches can be clamped on for end-of-stroke signals. Plan on about 60 N (roughly 6 kg of vertical lift with a 2:1 margin) of real work at 0.5 MPa rather than the full rating.
Airtac ACPJ Adjustable Compact Cylinder ACPJ16X200-75S Technical Specifications
| Model | Airtac ACPJ Adjustable Compact Cylinder ACPJ16X200-75S |
|---|---|
| Series | ACPJ DIN compact cylinder (discontinued) |
| Replacement | ACEJ16X200-75S |
| Bore size | Ø16 mm |
| Stroke | 200 mm |
| Acting type | Double acting, adjustable stroke |
| Port size | M5×0.8 |
| Rod thread | M4×0.7 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 500 mm/s |
| Cushion | Fixed bumper (both ends) |
| Max standard stroke | Up to 75 mm |
Specifications follow the official AirTAC ACP datasheet (now discontinued). The ACEJ16X200-75S (ISO 21287) carries the same bore/stroke/force class; confirm mounting-interface dimensions against the ACE datasheet before installation. Rod type: female thread (blank) or male thread (B). Thread options: PT (blank) / G.
Theoretical Output Force (Ø16mm)
| Pressure | Push force | Pull force |
|---|---|---|
| 0.5 MPa | 101 N | 75 N |
| 0.7 MPa | 141 N | 106 N |
| Max (@1.0 MPa) | 21 kgf | |
The ACEJ16X200-75S produces the same force from the same bore. Actual usable force is lower than theoretical; size with a margin.
Model Code: Airtac ACPJ Adjustable Compact Cylinder ACPJ16X200-75S
| ACPJ | DIN compact cylinder (adjustable-stroke, discontinued). |
|---|---|
| 16 | Bore size in mm. |
| ×200 | Stroke length in mm. |
| -75 | Adjustable stroke window (mm the extend stroke can be shortened on site). |
| S | Optional built-in magnet for sensor position sensing (omit for no magnet). |
| B | Rod type: B = male thread; blank = female thread. |
Replacement mapping (swap P for E): ACP→ACE, ASP→ASE, ATP→ATE, ACPD→ACED, ACPJ→ACEJ. ACP-family: ACP (double acting), ASP / ATP (single acting push / pull), ACPD (double rod), ACPJ (adjustable stroke).
Where the Airtac ACPJ Adjustable Compact Cylinder ACPJ16X200-75S Is Used
Small-parts ejection on assembly fixtures
The 100.5 N push at 0.5 MPa is enough to kick a machined bushing or stamped clip off a nest, and the 125-200 mm adjustable window lets the operator dial the ejection distance without swapping cylinders.
Light part lowering in compact test rigs
With about 6 kg of vertical lift capacity at a 2:1 margin, the 16 mm bore gently lowers sensor housings onto a test head inside a guard too narrow for a full-length profile cylinder.
Position-signalled slide feed on packaging lines
The fitted -S magnet works with CMSE or DMSE switches to confirm end positions as the rod feeds blister trays along a 125-200 mm stroke at 30-500 mm/s.
Replacing the Airtac ACPJ Adjustable Compact Cylinder ACPJ16X200-75S with the ACEJ16X200-75S
Size the bore both ways: at 0.5 MPa the 12 mm bore gives 56.5 N push and the 20 mm bore gives 157.1 N, so this 16 mm unit at 100.5 N sits between them for light clamping and part transfer. If the load must be held against drift when air is lost, remember the stop screw only shortens the extend stroke - it is not a mid-stroke lock, so add an external stop or a locking unit. FA/FB flange and LB foot mountings bolt to the standard face, and the optional -S magnet (fitted here) enables CMSE / DMSE switches. Before ordering, confirm the ISO 21287 mounting dimensions of the ACEJ16X200 replacement, since the ACP is DIN-standard.
Replacement checklist
- ✓ Current-production ACE → ACEJ16X200-75S
- ✓ Same bore / stroke / force class
- ✓ Confirm ISO 21287 mounting dimensions
- ✓ Port/thread type (PT / G)
- ✓ Add -S for magnet if you need sensors
Airtac ACPJ Adjustable Compact Cylinder ACPJ16X200-75S FAQ
At 0.5 MPa it pushes 100.5 N and pulls 75.4 N; at 0.7 MPa it pushes 140.7 N and pulls 105.6 N; theoretical maximum is 20.5 kgf at 1.0 MPa. The -75 code sets a 75 mm adjustment window: an external stop screw shortens the 200 mm extend stroke to any length from 125 mm upward. It trims the stroke only - it never lengthens it past 200 mm and it does not hold a load if air is lost. The 200 mm stroke is made to order, since the standard maximum for bore 16 is 75 mm.
No - the ACPJ family is discontinued. The current-production drop-in is the ACEJ16X200 (swap the P for an E), an ISO 21287 compact cylinder in the same bore, stroke and force class with a matching short body and mounting family. Because the ACP is DIN-standard, confirm the ISO 21287 mounting dimensions against your fixture before swapping. This -S unit carries the optional magnet for CMSE / DMSE switches; on the replacement, order the -S code to keep that sensing capability.
