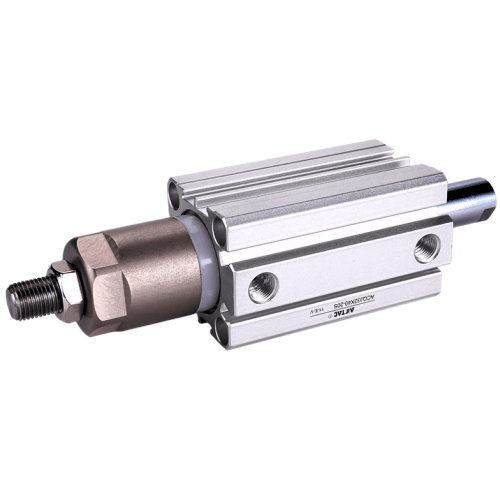

Airtac ACQJ32~40 Adjustable Thin-Type Cylinder ACQJ40X15-20S
The AirTAC Airtac ACQJ32~40 Adjustable Thin-Type Cylinder ACQJ40X15-20S is a genuine double-acting COMPACT (JIS) cylinder with an EXTERNAL adjustable stop on the extend stroke — a Ø40mm bore and 15mm full stroke. Turn the stop to fine-tune the end position on the machine without changing parts.
- BoreØ40 mm
- Full stroke15 mm
- Port sizePT1/8
- Adjuster threadM12×1.25
About the Airtac ACQJ32~40 Adjustable Thin-Type Cylinder ACQJ40X15-20S
The AirTAC ACQJ40X15-20S is a double-acting JIS compact cylinder featuring an external threaded stop with a lock nut that limits the extend end position. With a 15mm full stroke and a 20mm adjustment window, the usable extend range is 0-15mm. The retract stroke remains completely unaffected by this mechanism.
Because the piston area is unchanged, output force is identical to a standard ACQ of the same bore, delivering 628.3N push and 527.8N pull at 0.5MPa. The unit includes a built-in piston magnet for use with reed or electronic solid-state switches, and relies on a fixed NBR elastomer bumper at each end for end-of-stroke deceleration.
Airtac ACQJ32~40 Adjustable Thin-Type Cylinder ACQJ40X15-20S Technical Specifications
| Model | Airtac ACQJ32~40 Adjustable Thin-Type Cylinder ACQJ40X15-20S |
|---|---|
| Series | ACQJ JIS compact adjustable-stroke cylinder |
| Bore size | Ø40 mm |
| Full stroke | 15 mm |
| Adjuster thread | M12×1.25 |
| Port size | PT1/8 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 500 mm/s |
| Rod thread | M8×1.25 (F) / M14×1.5 (B) |
Specifications follow the official AirTAC ACQJ datasheet. The adjustable stop shortens the EXTEND stroke only; the piston area — and therefore the force — is the same as a standard ACQ of this bore. Adjustable window options: 10/20/30/40/50/75/100 mm.
Theoretical Output Force (Ø40mm)
| Pressure | Push force | Pull force |
|---|---|---|
| 0.5 MPa | 628 N | 528 N |
| 0.7 MPa | 880 N | — |
| Max (@1.0 MPa) | 128 kgf | |
Force equals a standard ACQ of the same bore — the adjuster changes stroke length, not piston area. Actual usable force is lower due to friction; size with a safety margin.
Model Code: Airtac ACQJ32~40 Adjustable Thin-Type Cylinder ACQJ40X15-20S
| ACQJ | JIS compact double-acting ADJUSTABLE-STROKE cylinder series. |
|---|---|
| 40 | Bore size in mm. |
| ×15 | Full stroke length in mm. |
| -0 | Adjustable window in mm (extend stroke can be shortened by up to this). |
| S / B | Magnet (S) / male-thread rod (B); omit for none / female thread. |
Thread: PT standard (G / NPT available). Related: ACQ (fixed stroke), ACQD (double rod), TACQ (guided / non-rotating).
Where the Airtac ACQJ32~40 Adjustable Thin-Type Cylinder ACQJ40X15-20S Is Used
Machine Tending Setup
Dial in the exact extend position during initial commissioning of a CNC lathe loader without machining new spacers.
Product Changeover Stops
Quickly alter the extend endpoint on a packaging line when switching between different carton depths.
Trial End Positions
Test clamping locations on a new welding fixture by rotating the M12x1.25 adjuster screw to find the optimal reach.
Is the Airtac ACQJ32~40 Adjustable Thin-Type Cylinder ACQJ40X15-20S the Right Cylinder?
When sizing this 40mm bore actuator, consider the neighbouring 32mm bore which provides 402.1N push, or the larger 50mm bore which yields 981.8N push at 0.5MPa. If your machine design has a fixed, unvarying end position, a standard ACQ cylinder without the external stopper would suffice. To order this adjustable version correctly, confirm the 40mm bore, 15mm full stroke, 20mm window, the S magnet option, and the default female M8x1.25 rod-end thread.
Quick checklist
- ✓ Need on-machine end-position tuning?
- ✓ Full stroke and adjust window (mm)
- ✓ Force at your working pressure
- ✓ Magnet (S) for sensors?
- ✓ Female (blank) or male (B) rod thread
Installation & Maintenance Notes
- check Use clean air filtered to 40µm or finer.
- check Keep within 0.15 – 1.0 MPa operating pressure.
- check Lock the adjuster nut after setting the stop.
- check The stop limits the EXTEND stroke only.
- check Avoid side load on the short piston rod.
- check Installation by qualified personnel per AirTAC docs.
Airtac ACQJ32~40 Adjustable Thin-Type Cylinder ACQJ40X15-20S FAQ
The usable extend range is 0-15mm. Force is identical to a standard ACQ: 628.3N push and 527.8N pull at 0.5MPa, 879.6N push at 0.7MPa, and a maximum push of 128kgf at 1.0MPa. The 20mm window only shortens the stroke length, not the piston area.
An external M12x1.25 threaded stop with a lock nut limits the rod extension. The retract stroke is unaffected, and a fixed elastomer bumper decelerates the piston near stroke ends. This cylinder does not hold loads on air loss; install an external rod lock or pilot-operated check valve for fail-safe holding.
