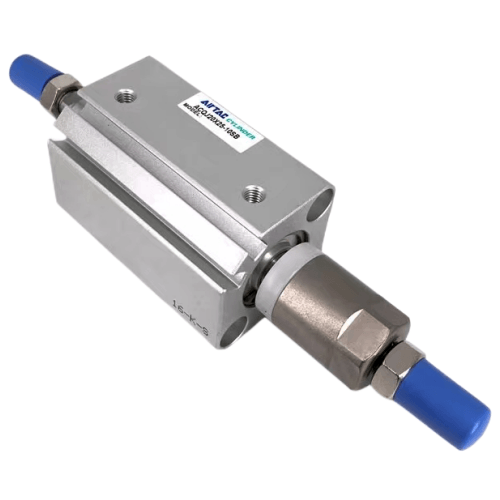

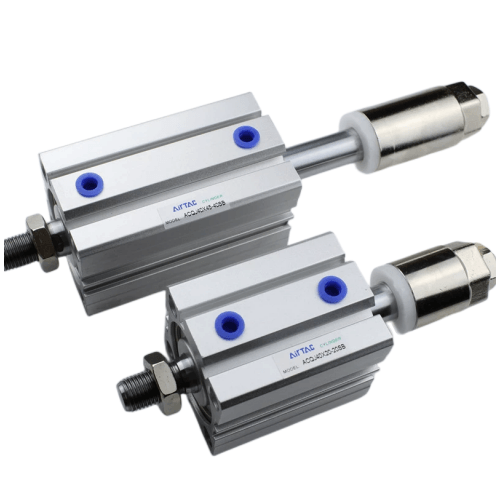

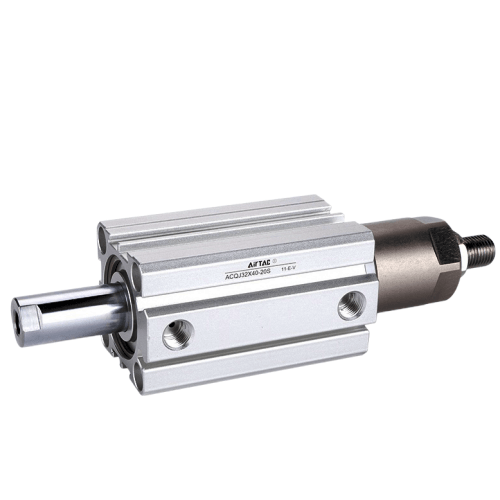

Airtac Adjustable Compact Cylinder ACQJ50~63 ACQJ63X35-40B
$66.03
Regular price
$73.53
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
ACQJ63X35-40B
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
ACQJ50~63 Adjustable Compact Cylinder
1. Complies with JIS standards;
2. C-shaped retaining ring secures cylinder body to front/rear covers, with riveted piston-rod connection for compact and reliable construction;
3. Precision-honed inner bore ensures superior wear resistance and long-term durability;
4. Extended front cover guide length enhances directional stability;
5. Space-saving profile minimizes installation footprint;
6. Perimeter sensor slots enable effortless sensor integration;
7. Multiple mounting accessory configurations available.
Category: Compact Cylinder | Brand: AIRTAC | Series: ACQJ50~63
Installation tip:
Adjust cushion screws in 1/4 turn increments during commissioning.
Use locknut (included) after final adjustment. Avoid over-tightening
beyond 360° rotation to prevent seal damage.
1. Complies with JIS standards;
2. C-shaped retaining ring secures cylinder body to front/rear covers, with riveted piston-rod connection for compact and reliable construction;
3. Precision-honed inner bore ensures superior wear resistance and long-term durability;
4. Extended front cover guide length enhances directional stability;
5. Space-saving profile minimizes installation footprint;
6. Perimeter sensor slots enable effortless sensor integration;
7. Multiple mounting accessory configurations available.
Category: Compact Cylinder | Brand: AIRTAC | Series: ACQJ50~63
AirTAC ACQJ63X35-40B Adjustable Compact Cylinder Specifications
- Series: ACQJ50~63 (Compact Adjustable Cushion Series)
- Bore size: Ø63mm
- Stroke: 35mm (adjustable)
- Operating pressure: 0.05~0.8 MPa
- Cushioning type: External adjustable rubber bumper
- Mounting style: Basic foot mounting (ISO 15552 standard)
- Port size: M5x0.8 (G1/8 NPT optional)
- Piston material: Aluminum alloy with hard anodizing
- Rod material: Chrome-plated steel
- Seal type: NBR + PU combination seals
- Temperature range: -20℃ to 80℃
- Weight: 1.45kg ±2%
- Dimensions:
- Length (retracted): 140mm
- Width (body): 80mm
- Height (with mounting foot): 96mm
- Rod end thread: M10x1.25
- Lubrication: Pre-lubricated (DOP-free grease)
Ultra-slim profile cylinder featuring patented cushion adjustment mechanism for precise end-position damping control. The nickel-plated end caps and corrosion-resistant construction enable stable performance in humid environments. Compatible with all ISO 15552 mounting accessories.
Typical Applications:
- High-speed pick-and-place systems in electronics assembly
- Clamping mechanisms in CNC tool changers
- Material handling robots with space constraints
- Pharmaceutical packaging line actuators
- Cleanroom automation equipment
Installation tip:
Adjust cushion screws in 1/4 turn increments during commissioning.
Use locknut (included) after final adjustment. Avoid over-tightening
beyond 360° rotation to prevent seal damage.
Accessory Compatibility:
- Magnetic switches: D-A93, D-C73
- Rod locks: Available in 63mm bore version
- Mounting kits: MFH-63, MFN-63
| Property | Property Value |
|---|---|
| sku | ACQJ63X35-40B |
| Adjustable Stroke | <40mm> |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | PT1/4 |
| Magnet | Non-magnetic |
| Bore Diameter | 63mm |
| Stroke | 35mm |
