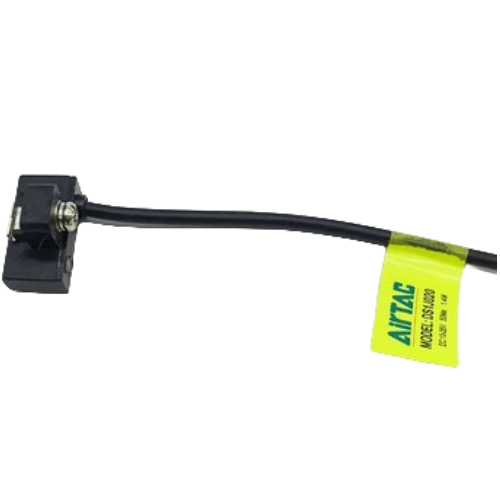

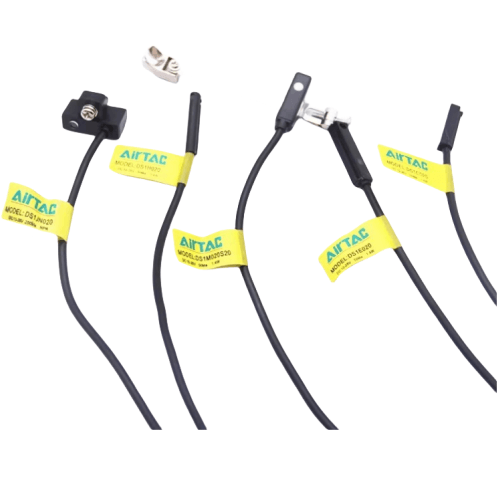

Airtac Airtac DS1J Electronic Sensor DS1JN030
2. Its architecture comprises four core components: thermal sensing probe, signal processing unit, LCD interface module, and low-power consumption circuitry with stable power supply integration.
3. The thermal sensing probe serves as the critical sensing element, employing precision-engineered rapid-response thermistor arrays that directly govern measurement accuracy and thermal tracking responsiveness.
AirTAC DS1JN030 Electronic Sensor Technical Details
- Model: DS1JN030 (DS1J series)
- Type: Non-contact inductive proximity sensor
- Sensing distance: 3mm ±10%
- Output configuration: NPN normally open (NO)
- Supply voltage: 10-30V DC (±10% ripple)
- Current consumption: ≤20mA
- Response frequency: 1kHz
- Hysteresis: ≤15% of sensing distance
- Protection rating: IP67 (IEC standard)
- Housing material: Nickel-plated brass with ABS housing
- Temperature range: -25℃ to +70℃ (operation), -40℃ to +85℃ (storage)
- Connection type: 2m PVC cable (M8 connector optional)
- Weight: 85g ±3%
- Dimensions: 18mm(W) × 18mm(D) × 45mm(L)
- LED indicator: Red (power/status)
- Vibration resistance: 10-55Hz @1.5mm amplitude
- Shock resistance: 1000m/s² (3-axes)
High-precision industrial proximity sensor featuring temperature compensation circuitry for stable detection in harsh environments. The triple-shielded coil design minimizes electromagnetic interference, making it suitable for use near VFDs and welding equipment. Includes reverse polarity protection and short-circuit prevention.
- Position verification in pneumatic cylinder end stops
- Sheet metal counting in CNC feeders
- Tool presence detection in automated assembly lines
- Over-travel safety monitoring in injection molding machines
- Conveyor belt object positioning systems
Installation guidelines:
Maintain 2× sensor diameter clearance from adjacent metal surfaces.
For side-by-side mounting, allow minimum 10mm spacing between sensors.
Use shielded cable when running parallel to power lines (>200mm separation required).
| Property | Property Value |
|---|---|
| sku | DS1JN030 |
