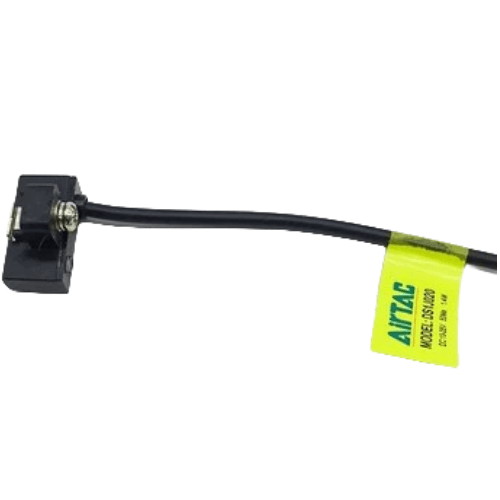

Airtac Airtac DS1J Electronic Sensor DS1JN050
2. Its architecture comprises four core components: thermal sensing probe, signal processing unit, LCD interface module, and low-power consumption circuitry with stable power supply integration.
3. The thermal sensing probe serves as the critical sensing element, employing precision-engineered rapid-response thermistor arrays that directly govern measurement accuracy and thermal tracking responsiveness.
AirTAC DS1J Electronic Sensor DS1JN050 Technical Details
- Model: DS1JN050
- Type: Inductive proximity sensor (NPN normally open)
- Sensing distance: 5mm ±10%
- Output configuration: 3-wire DC
- Operating voltage: 10-30V DC (±10% ripple)
- Current consumption: ≤15mA
- Output current: ≤200mA
- Response frequency: 500Hz
- Hysteresis: ≤15% of sensing distance
- Protection rating: IP67 (IEC standard)
- Housing material: Nickel-plated brass
- Operating temperature: -25℃ to +70℃
- Storage temperature: -40℃ to +85℃
- Weight: 80g ±5%
- Dimensions: 50mm(L) × 18mm(W) × 36mm(H)
- Cable length: 2m standard (PVC shielded)
- LED status indicator: Red (operational)
High-precision non-contact detection sensor with temperature compensation circuitry, designed for harsh industrial environments. Features reverse polarity protection and short-circuit prevention. The flush-mounted design allows installation in confined spaces without sacrificing detection accuracy.
- Position verification in automated production lines
- Metal part counting in assembly processes
- Pallet presence detection in logistics systems
- Safety interlock systems for machinery guards
- Tool position monitoring in CNC equipment
Installation guidance:
Maintain 2× sensing distance (10mm) between sensor face and mounting metal surface.
Use M18×1 mounting nut with 12-15N·m torque. Avoid installing near high-frequency
equipment (>50kHz) to prevent signal interference.
| Property | Property Value |
|---|---|
| sku | DS1JN050 |
