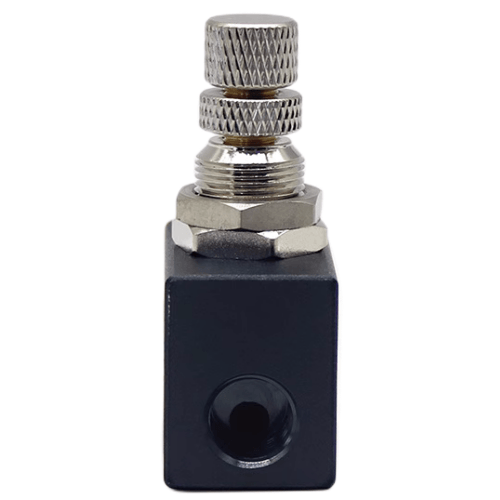

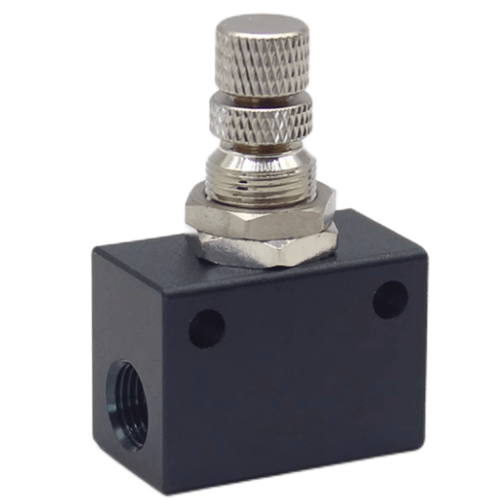

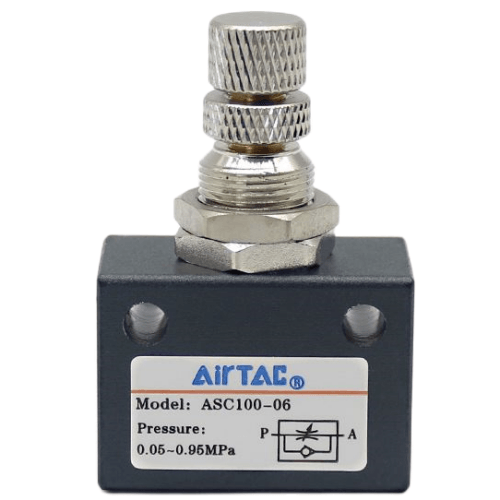

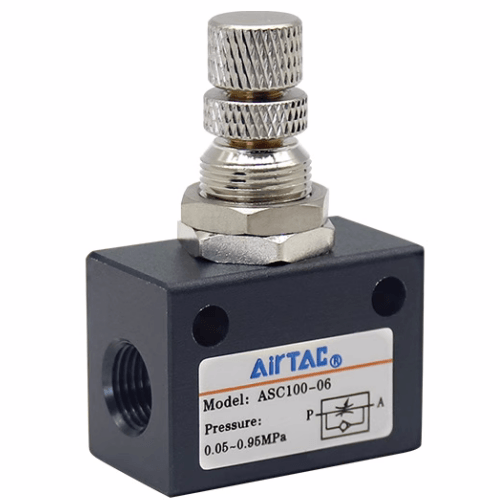

Airtac ASC One-way Throttle Valve ASC300-15
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Exhaust throttling mechanism enables precise and responsive flow adjustment;
3. Multi-position installation capability ensures flexible mounting and operational convenience.
Category: One-Way Throttle Valve | Brand: AIRTAC | Series: ASC
AirTAC ASC300-15 One-Way Throttle Valve Technical Details
- Model: ASC300-15 (Standard industrial version)
- Type: Adjustable one-way flow control valve
- Body material: CNC-machined brass with nickel plating
- Port size: PT1/4 (G1/4 equivalent available on request)
- Flow capacity: 0.45 Cv (Kv=0.38) at 0.5 MPa
- Operating pressure: 0.05–1.0 MPa (7–145 PSI)
- Max pressure surge resistance: 1.5 MPa
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Seal material: HNBR rubber (Fluorocarbon optional)
- Adjustment knob: 360° rotatable with click-stop detents
- Flow adjustment range: Full shut-off to max 800 L/min
- Weight: 118g ±3g (including fittings)
- Dimensions: 35mm(L) × 25mm(W) × 30mm(H)
- Vibration resistance: 10–55Hz @ 1.5mm amplitude
- Mounting: Panel mount or inline tube connection
Precision-engineered throttle valve featuring bi-directional flow control with asymmetric regulation. The clockwise-rotating knob provides 22 distinct flow rate positions with tactile feedback. Includes integrated dust shield around adjustment mechanism. Optimized for stable flow characteristics even under pulsating pressure conditions.
- Cylinder speed regulation in automation lines (extend/retract differentiation)
- Pneumatic tool exhaust silencing systems
- Vacuum generator flow rate modulation
- Medical bed actuator speed control
- Packaging machine clamp force adjustment
Installation protocol:
Arrow markings must align with main flow direction. For cylinder applications,
install directly at cylinder ports. Use 2 wrenches during assembly -
17mm on hex body and 12mm on fitting nut to prevent torsion damage.
Lubricate threads with PTFE tape or liquid sealant (Loctite 577 recommended).
| Property | Property Value |
|---|---|
| sku | ASC300-15 |
| Port | PT 1/2 |
