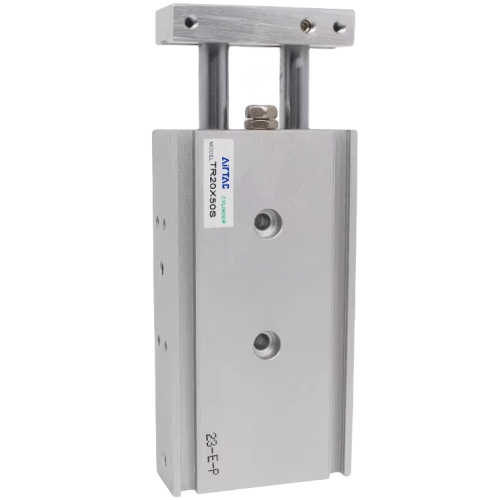

Airtac B06-TR Battery-Specific Cylinder B06-TR20X150S
AirTAC B06-TR20X150S Battery-Powered Cylinder Specifications
- Model: B06-TR20X150S
- Type: Compact battery-driven rodless cylinder
- Bore size: 20mm (TR series standard)
- Stroke length: 150mm (±0.5mm precision)
- Operating pressure: 0.1–0.9 MPa
- Battery voltage: 12V DC (Li-ion pack compatible)
- Temperature range: -10℃ to 60℃
- Body material: Hard-anodized aluminum alloy
- Seal material: Heat-resistant polyurethane (PU)
- Weight: 0.82kg (including mounting brackets)
- Dimensions: 228mm(L) × 34mm(W) × 34mm(H)
- Position feedback: Built-in magnetic sensor slot
- Protection rating: IP54 (dust & splash resistant)
- Certification: RoHS compliant
Engineered for cordless automation systems, this self-contained pneumatic cylinder integrates a micro-compressor and lithium battery management system. Features zero-leakage piston design with 200,000+ cycle durability. The T-slot mounting surface enables tool-free accessory attachment.
- Mobile battery manufacturing fixtures
- AGV (Automated Guided Vehicle) clamping units
- Portable medical device actuators
- Solar panel cleaning robot mechanisms
- Laboratory automation sample handlers
Operation tip:
Maintain 15-25% battery reserve for consistent thrust force.
Lubricate guide rails every 500 operating hours using ISO VG32-grade oil.
| Property | Property Value |
|---|---|
| sku | B06-TR20X150S |
