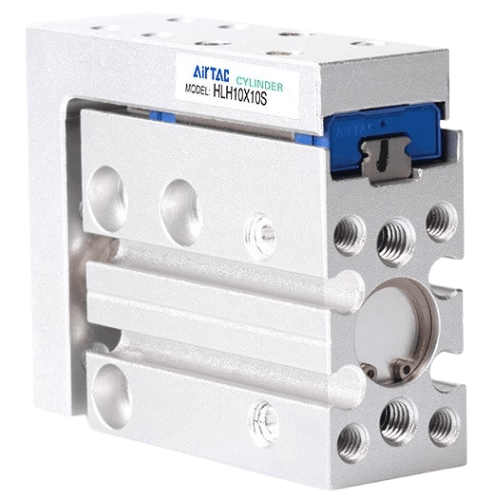

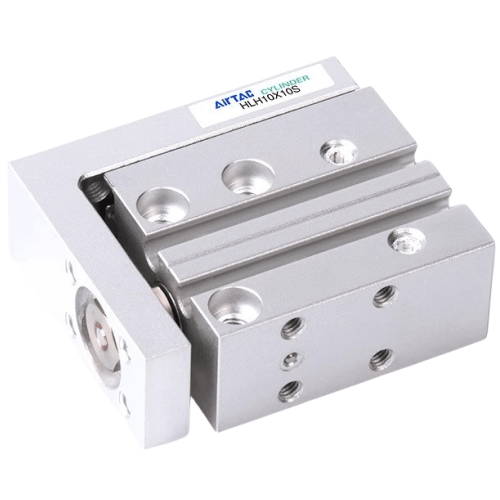

Airtac B52-HLH Copper-Free Precision Slide Table Cylinder B52-HLH10X30S
AirTAC B52-HLH10X30S Copper-Free Precision Slide Table Cylinder Specifications
- Model: B52-HLH10X30S
- Type: Dual-axis guide rod copper-free cylinder
- Bore size: Φ10mm
- Stroke: 30mm (±1mm tolerance)
- Operating pressure: 0.05–0.9 MPa
- Max thrust: 63N (at 0.63MPa)
- Piston speed: 50–700mm/s
- Ambient temperature: -10℃ to 80℃
- Buffer type: Adjustable rubber cushion
- Mounting style: Horizontal or vertical (base mounted)
- Material: Aluminum alloy body, chrome-plated piston rod
- Seal material: NBR (nitrile) with copper-free treatment
- Port size: M5×0.8 (dual ports)
- Weight: 0.48kg ±2%
- Dimensions: 105mm(L) × 42mm(W) × 53mm(H)
- Repeat positioning accuracy: ±0.01mm
- Lubrication: Pre-lubricated (Grease-free maintenance)
High-precision linear actuator with copper-free construction, featuring dual hardened guide rods and anti-rotation mechanism. The anodized aluminum body ensures corrosion resistance in sensitive environments. Includes built-in shock absorbers and dust-resistant wipers. Requires 5μm filtered dry air with ISO 8573-1:2010 Class 3.4.3 air quality.
- Semiconductor wafer handling robots
- Pharmaceutical tablet pressing machines
- Optical lens positioning systems
- Battery cell assembly automation
- Medical device linear actuation
Installation note:
Maintain 0.5mm alignment tolerance during mounting. For vertical installations,
use counterbalance valves when handling suspended loads. Lubricate guide rods
monthly with ISO VG32 turbine oil in high-cycle applications (＞5M strokes/year).
| Property | Property Value |
|---|---|
| sku | B52-HLH10X30S |
