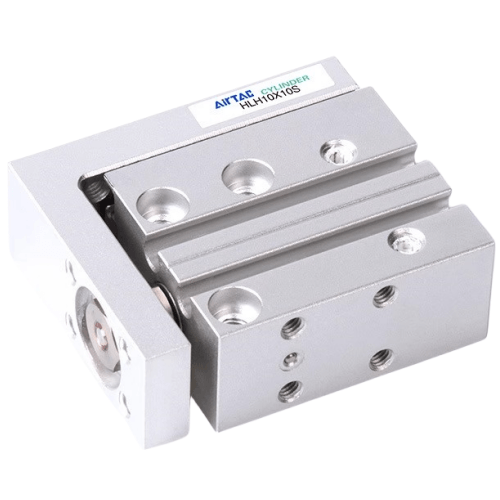

Airtac B52-HLH Copper-Free Precision Slide Table Cylinder B52-HLH10X5S
AirTAC B52-HLH Series Copper-Free Precision Slide Cylinder (B52-HLH10X5S)
- Model: B52-HLH10X5S
- Bore size: 10mm
- Stroke: 5mm
- Structure: Double-acting slide-type cylinder
- Material: Aluminum alloy body (copper-free design)
- Rod material: Hardened stainless steel
- Seals: NBR rubber
- Operating pressure: 0.1–0.8 MPa
- Guide type: Linear ball bearing precision guide
- Repeat positioning accuracy: ±0.01mm
- Max speed: 500mm/s
- Cushioning: Elastic buffer
- Mounting: Side/Base mounting options
- Port size: M5x0.8
- Temperature range: -20℃ to 80℃
- Weight: 0.45kg ±3%
- Dimensions: 70mm(L) × 34mm(W) × 34mm(H)
Ultra-compact precision slide cylinder featuring copper-free construction for chemical-sensitive environments. The dual linear guides ensure smooth motion with minimal friction, delivering exceptional positional accuracy. Integrated mounting grooves allow direct attachment of sensors or tooling plates.
- Precision alignment in semiconductor wafer handling
- Optical component positioning systems
- Laboratory automation equipment requiring copper-free compliance
- High-speed pick-and-place operations in electronics assembly
- Medical device manufacturing with strict material requirements
Operation tip:
Apply thin-film lubrication (ISO VG32 or equivalent) every 50km of travel.
Maintain ambient humidity below 80% to prevent ball guide corrosion.
Use 5μm filter for compressed air supply.
Critical note:
Strictly avoid copper-containing lubricants| Property | Property Value |
|---|---|
| sku | B52-HLH10X5S |
