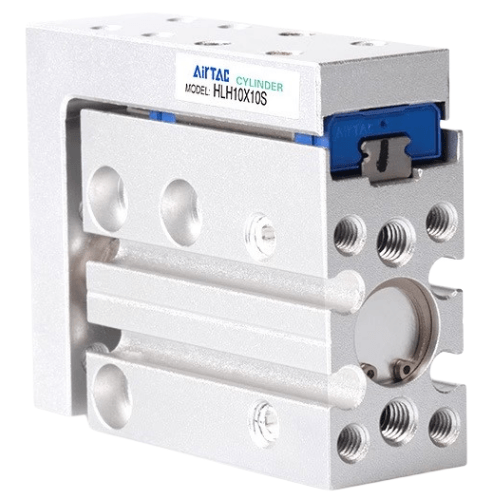

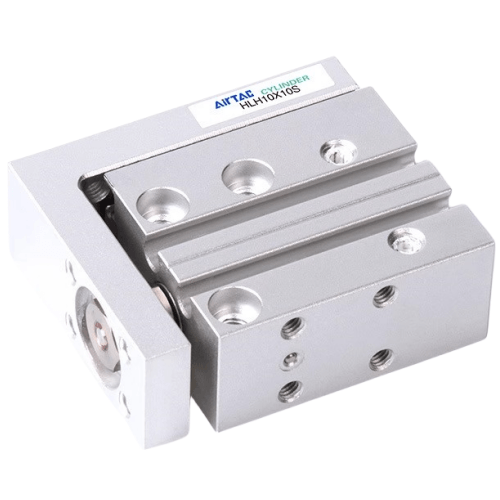

Airtac B52-HLH Copper-Free Precision Slide Table Cylinder B52-HLH16X50S
AirTAC B52-HLH16X50S Non-Copper Precision Slide Cylinder Specifications
- Model: B52-HLH16X50S
- Series: B52-HLH (Copper-Free Design)
- Bore size: 16mm
- Stroke: 50mm
- Operating pressure: 0.05–0.9 MPa
- Temperature range: -10℃ to 80℃
- Cylinder material: Aluminum alloy (anodized finish)
- Rod material: Stainless steel SUS304
- Buffer type: Adjustable hydraulic cushion
- Repeat positioning accuracy: ±0.01mm
- Max speed: 500mm/s
- Mounting style: Base-mounted with precision ground surface
- Port size: M5x0.8 (dual ports)
- Seal material: NBR + PU hybrid seals
- Protection class: IP40 (standard)
- Lubrication: Pre-lubed (ISO VG32 required for maintenance)
- Weight: 1.2kg ±5%
- Dimensions (L×W×H):
- Body length: 152mm (including stroke)
- Mounting base: 100mm × 28mm
- Rod end to base height: 40mm
High-precision slide cylinder with copper-free construction, specifically engineered for cleanroom and corrosion-sensitive environments. Features integrated linear guide rails for enhanced lateral stability and minimal deflection. The dual-sealed piston design ensures consistent performance in vacuum applications (down to -90kPa). Requires 5μm filtered air supply.
- Semiconductor wafer handling robots
- Optical lens positioning systems
- Pharmaceutical blister packaging machines
- Laboratory sample sorting mechanisms
- High-frequency pick-and-place operations (up to 120cpm)
Installation note:
Maintain horizontal orientation for optimal guide rail performance.
Allow 0.5mm thermal expansion gap per meter during alignment.
Torque mounting bolts to 2.5N·m ±10% using cross-pattern tightening sequence.
