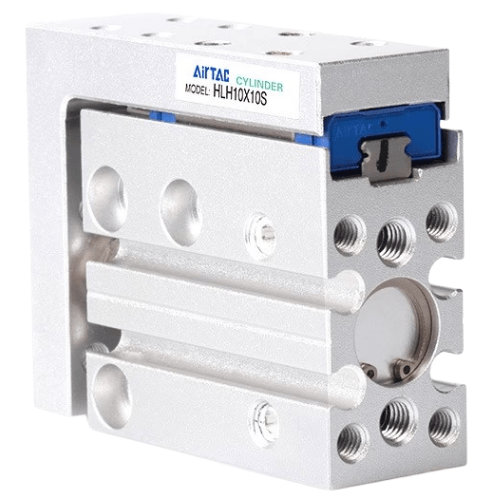

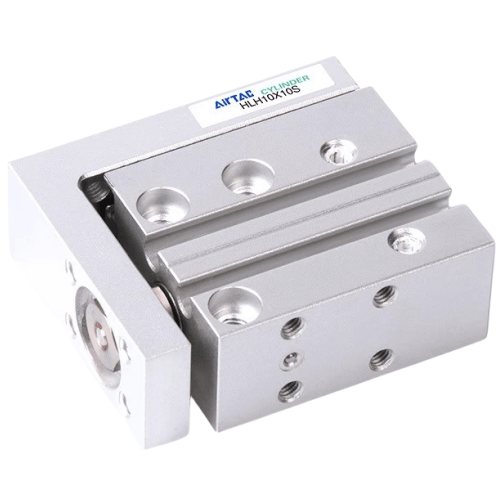

Airtac B52-HLH Copper-Free Precision Slide Table Cylinder B52-HLH20X5S
AirTAC B52-HLH20X5S Copper-Free Precision Slide Table Cylinder Specifications
- Model: B52-HLH20X5S
- Type: Guided rod, double-acting, non-copper construction
- Bore size: 20mm
- Stroke: 50mm (customizable up to 300mm)
- Operating pressure: 0.05-0.9 MPa
- Cushioning: Adjustable air cushion (both ends)
- Repeat positioning accuracy: ±0.02mm
- Temperature range: -10℃ to 80℃
- Body material: Anodized aluminum alloy
- Rod material: Stainless steel (SUS304)
- Seal material: NBR/FKM optional
- Weight: 0.98kg (with standard accessories)
- Dimensions: 146mm(L) × 34mm(W) × 34mm(H)
- Mounting: ISO 15552 standard
- Protection rating: IP54 (standard), IP67 optional
- Lubrication: Pre-lubricated (Dry operation allowed)
Copper-free design prevents metal contamination in sensitive environments, featuring precision-ground guide rods and low-friction seals. Integrated slide table allows direct load mounting with 4x M4 threaded holes. Optional magnetic piston for position sensing (Hall effect sensor compatible).
- Semiconductor wafer handling systems
- Pharmaceutical packaging lines
- Optical lens positioning stages
- Laboratory automation equipment
- Cleanroom material transfer
- Precision dispensing mechanisms
Installation guidelines:
Maintain parallel alignment within 0.05mm/m during mounting. Use flexible couplings
when connecting to driven components. Lubricate guide rods weekly with ISO VG32 class
turbine oil in high-cycle applications (>500,000 cycles/month).
- Max thrust: 62N @ 0.6MPa
- Max speed: 500mm/s (with cushion adjustment)
- Lateral load capacity: 18N
- Moment resistance: 2.5N·m (Mx), 3.2N·m (My)
| Property | Property Value |
|---|---|
| sku | B52-HLH20X5S |
