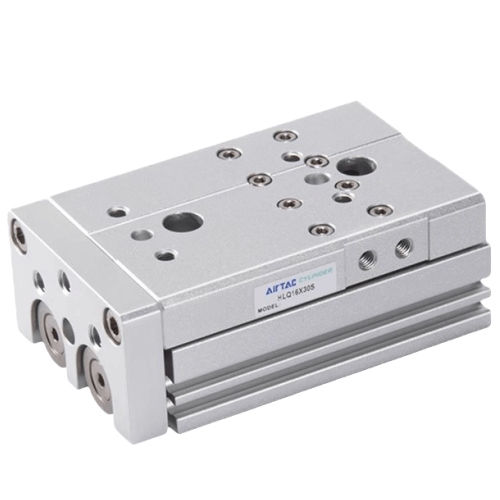

Airtac B52-HLQ Copper-Free Precision Slide Table Cylinder B52-HLQ12X50SA
AirTAC B52-HLQ12X50SA Copper-Free Precision Slide Table Cylinder Specifications
- Full model: B52-HLQ12X50SA
- Series: HLQ precision guide rail type
- Bore size: 12mm
- Stroke: 50mm (±0.5mm tolerance)
- Structure: Dual-axis guided slide table
- Material: Anodized aluminum body, copper-free alloy guide rods
- Operating pressure: 0.1-0.8 MPa
- Cushioning: Adjustable pneumatic cushion (both ends)
- Repeat accuracy: ±0.01mm
- Load capacity: 2.5kg max (horizontal), 1.8kg (vertical)
- Seal material: Heat-resistant NBR + PU combination
- Temperature range: -10℃ to 80℃
- Lubrication: Pre-lubricated (Grease-free operation)
- Weight: 680g ±2%
- Dimensions: 180mm(L) × 42mm(W) × 34mm(H)
- Mounting: Standard M4x0.7 threaded holes (4 places)
- Accessories: Includes mounting brackets and shock absorbers
High-precision copper-free cylinder specifically engineered for contamination-sensitive environments. Features dual chrome-plated guide rods with hardened steel shafts (HRC60+) and low-friction guide bushes. The anodized surface treatment provides corrosion resistance while maintaining dimensional stability within 0.02mm/m under full load.
- Semiconductor wafer handling systems
- Medical device assembly lines
- High-cycle precision dispensing equipment
- Cleanroom-compatible automation
- Optical component positioning stages
- Laboratory testing instruments
Installation protocol:
Requires periodic re-torquing of guide block screws (0.5-0.6N·m) after initial 50km of travel.
Use only non-metallic beaters during shock absorber adjustment to prevent metal contamination.
| Property | Property Value |
|---|---|
| sku | B52-HLQ12X50SA |
