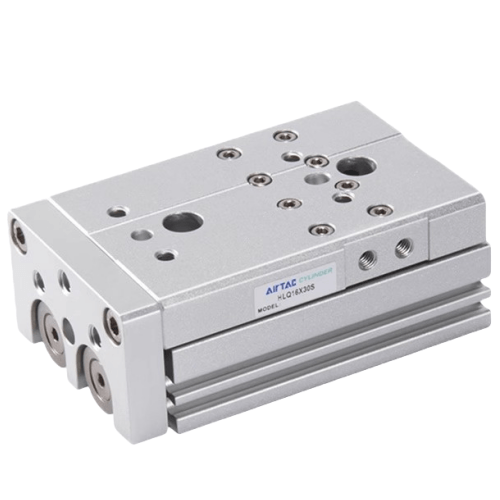

Airtac B52-HLQ Copper-Free Precision Slide Table Cylinder B52-HLQ12X75SB
AirTAC B52-HLQ12X75SB Copper-Free Precision Slide Table Cylinder Specifications
- Full model: B52-HLQ12X75SB
- Series: B52-HLQ (Copper-free design)
- Bore size: 12mm
- Stroke: 75mm
- Operating pressure: 0.1-0.9 MPa
- Cushioning: Adjustable air cushion (dual-side)
- Rod material: Stainless steel (SUS304)
- Body material: Anodized aluminum alloy
- Seal material: Fluororubber (FKM) + Special polymer
- Temperature range: -20℃ to 100℃
- Repeat positioning accuracy: ±0.01mm
- Load capacity: 3.5N (horizontal), 2.8N (vertical)
- Sensor type: Built-in magnet for proximity switch detection
- Weight: 480g ±2%
- Dimensions: 153mm(L) × 34mm(W) × 34mm(H)
- Mounting type: Standard base with M4 threaded holes
- Protection class: IP54 (standard), IP67 (optional)
Ultra-precision guided cylinder with copper-free construction, featuring low-friction engineering polymer guides and stainless steel linear rails. The triple-sealed structure prevents particle ingress while maintaining 0.05mm/m alignment accuracy. Includes wear-compensation mechanism for prolonged service life. Requires ISO 8573-1 class 3 compressed air.
- Semiconductor wafer handling robots
- Precision optical lens positioning systems
- Medical device assembly lines
- High-speed PCB component placement
- Cleanroom automation (Class 1000 or better)
Installation note:
Lubricate with ISO VG32 turbine oil before initial use. Avoid side-load exceeding 2N·m.
For vertical mounting, use counterbalance valves. Alignment tolerance: ±0.2°.
| Property | Property Value |
|---|---|
| sku | B52-HLQ12X75SB |
