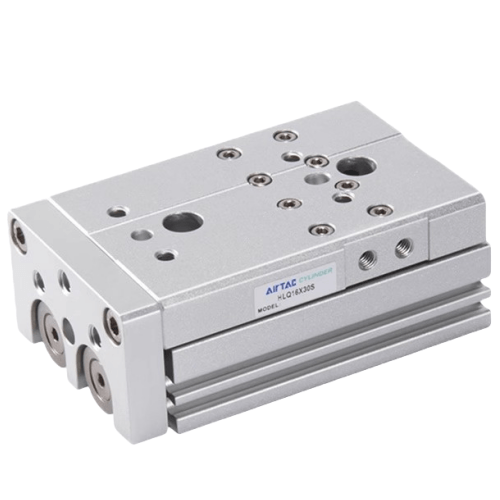

Airtac B52-HLQ Copper-Free Precision Slide Table Cylinder B52-HLQ6X40SAS
AirTAC B52-HLQ6X40SAS Copper-Free Precision Slide Cylinder Specifications
- Model: B52-HLQ6X40SAS
- Series: B52-HLQ (Copper-free design)
- Bore size: 6mm
- Stroke: 40mm
- Structure: Dual-axis precision slide mechanism
- Material: Aluminum alloy body with nickel-plated steel rods
- Operating pressure: 0.05–0.7 MPa
- Cushioning: Adjustable rubber buffer
- Temperature range: -20℃ to 80℃
- Seal material: NBR/PU compound seals
- Repeat positioning accuracy: ±0.01mm
- Max lateral load capacity: 3N
- Mounting options: Base mounting with M3x0.5 threaded holes
- Weight: 450g ±5%
- Dimensions: 140mm(L) × 40mm(W) × 34mm(H)
- Surface treatment: Anodized finish (black)
- Compatibility: ISO 6432 standard accessories
Ultra-compact slide cylinder engineered for precision linear motion applications requiring copper-free components. Features dual hardened guide rods with anti-rotation design for exceptional straight-line accuracy (≤0.02mm/100mm). The corrosion-resistant construction meets ISO 8573-1 air quality standards, making it ideal for clean environments.
- Semiconductor wafer handling systems
- Medical device assembly automation
- Precision optical component positioning
- Laboratory analytical instrument feed mechanisms
- High-speed pick-and-place operations in electronics manufacturing
Operational guidance:
Lubricate with ISO VG32 turbine oil before initial use. Avoid side load impacts exceeding 1.5N during installation.
For maximum precision, maintain ambient temperature stability (±2℃) and use with 5μm filtered dry air.
Recommended maintenance interval: 500km of cumulative travel or 12 months.
| Property | Property Value |
|---|---|
| sku | B52-HLQ6X40SAS |
