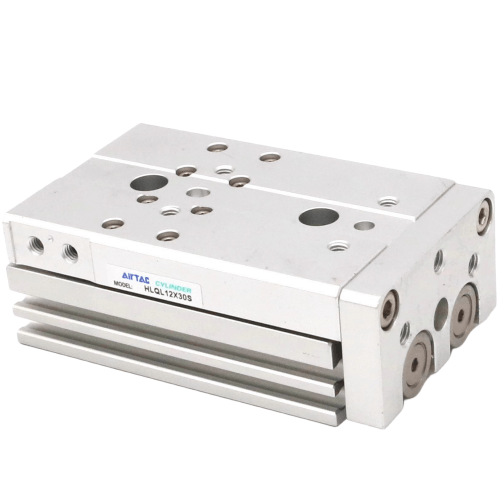

Airtac B52-HLQL Copper-Free Precision Slide Table Cylinder B52-HLQL12X50SAS
AirTAC B52-HLQL12X50SAS Copper-Free Precision Slide Table Cylinder Specifications
- Full Model: B52-HLQL12X50SAS
- Series: B52-HLQL (Copper-Free Design)
- Bore Size: 12mm
- Stroke: 50mm
- Structure: Twin-shaft guided slide table
- Material: Aluminum alloy body with stainless steel shafts (SUS304)
- Operating Pressure: 0.15–0.8 MPa
- Temperature Range: -20℃ to 80℃
- Cushioning: Adjustable pneumatic cushion (both ends)
- Seal Material: NBR (Nitrile Rubber)
- Sensor Type: Built-in magnet for magnetic switch (2-wire compatible)
- Mounting Options: Side mounting holes (M4) + Bottom mounting slots
- Rod End Thread: M6×1.0 internal thread
- Weight: 0.82kg ±3%
- Dimensions (L×W×H): 130mm × 42mm × 42mm (excluding rod extension)
- Protection Class: IP40 (standard), IP67 available with optional covers
- Lubrication: Pre-lubricated (Maintenance-free for 2,000km operation)
High-precision guided cylinder featuring copper-free construction for chemical/medical applications. The dual-shaft design provides exceptional lateral load capacity (3.5N·m max) and positional accuracy (±0.01mm repeatability). Integrated T-slot mounting enables flexible integration with linear modules. Optional shock absorber kits available for high-speed applications (>500mm/s).
- Pharmaceutical tablet counting/packaging machines
- Semiconductor wafer handling robots
- Precision optical lens assembly systems
- Cleanroom-compatible automation (ISO Class 5)
- 3C product testing equipment (Mobile phone/Laptop testing)
Installation notes:1. Use M4 screws with 0.6-0.8N·m torque for mounting
2. Maintain 0.5mm minimum clearance between guide shafts and adjacent components
3. For vertical mounting, add 20% safety factor to load calculations
4. Magnetic sensors require 1mm±0.2mm air gap alignment
