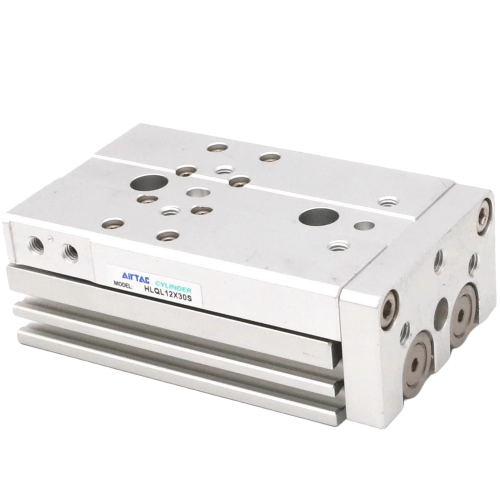

Airtac B52-HLQL Copper-Free Precision Slide Table Cylinder B52-HLQL16X100SAS
AirTAC B52-HLQL16X100SAS Copper-Free Precision Slide Table Cylinder Specifications
- Model: B52-HLQL16X100SAS
- Type: Non-rotating precision guide cylinder (copper-free design)
- Bore size: Ø16mm
- Stroke: 100mm (±0.5mm positioning accuracy)
- Operating pressure: 0.05–0.9 MPa
- Temperature range: -10℃ to 70℃
- Cushioning: Adjustable pneumatic cushion (both ends)
- Mounting style: Side-mounted with 4x M4 threaded holes
- Material: Stainless steel piston rod (Cr-Mo alloy), Aluminum alloy cylinder tube
- Sensor compatibility: M5 slot for inductive sensors (SM/SMF series)
- Port size: G1/8 (Rc1/8 optional)
- Weight: 680g ±5% (excluding accessories)
- Dimensions:
- Total length: 208mm (stroke 100mm)
- Body width: 40mm
- Height with rail: 42mm
- Mounting base: 28mm × 28mm
High-precision linear actuator with copper-free construction for corrosive environments, featuring dual V-shaped ball guide rails achieving ±0.05mm repeat positioning accuracy. The anodized aluminum body and PTFE-coated piston ensure smooth operation (≤0.3N starting friction) with 10,000km rated service life. Includes dust-resistant wipers and auto-lubrication design.
- Semiconductor wafer handling robots
- Medical device assembly lines
- Precision optical lens positioning
- Cleanroom automation systems (ISO Class 5+)
- Chemical coating equipment
Operation note:
Requires 5μm filtered air supply. Lubricate every 3 months with ISO VG32 hydraulic oil.
Avoid side-load exceeding 15N. For vertical mounting, use counterbalance valve (CV-02 series recommended).
