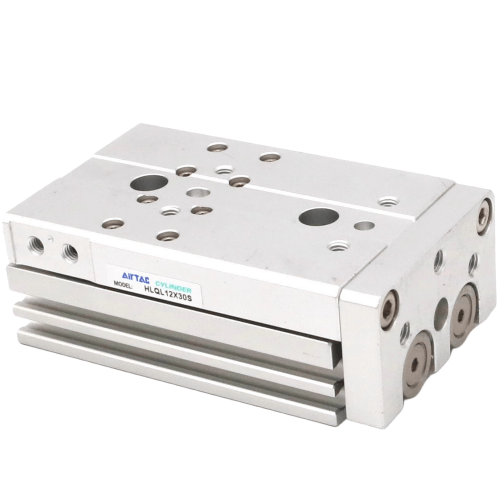

Airtac B52-HLQL Copper-Free Precision Slide Table Cylinder B52-HLQL16X10S
AirTAC B52-HLQL16X10S Non-Copper Precision Slide Table Cylinder
- Model: B52-HLQL16X10S
- Type: Non-copper precision guided cylinder with linear slide
- Bore size: 16mm
- Stroke: 10mm
- Operating pressure: 0.1-0.9 MPa
- Temperature range: -20℃ to 80℃
- Cushioning: Adjustable pneumatic cushion (both ends)
- Mounting style: Slide table integrated base
- Material: Aluminum alloy body with hard anodized treatment
- Rod material: Stainless steel (SUS304)
- Seal material: NBR/PU hybrid seals
- Repeat positioning accuracy: ±0.01mm
- Sensor compatibility: D-A93 series magnetic sensors
- Port size: M5x0.8 (G1/8 adapter optional)
- Weight: 0.62kg
- Dimensions: 102mm(L) × 34mm(W) × 30mm(H)
- Protection rating: IP54 (standard), IP67 with optional wipers
Ultra-precise guided cylinder combining linear rail technology with pneumatic actuation. Features copper-free construction for semiconductor/medical applications, with corrosion-resistant surface treatment. Integrated slide table provides 2-axis mounting flexibility and supports lateral moment loads up to 0.8Nm.
- Precision alignment in FPD/LCD panel handling
- Micro-dispensing equipment Z-axis control
- Optical component positioning systems
- Cleanroom wafer transfer mechanisms
- Automated test probe positioning
Installation tip:
Use Class 4 mounting surface flatness (≤0.02mm) for optimal performance.
Lubricate with ISO VG32 turbine oil before initial operation. Avoid side
load exceeding 15N to maintain slide accuracy.
| Property | Property Value |
|---|---|
| sku | B52-HLQL16X10S |
