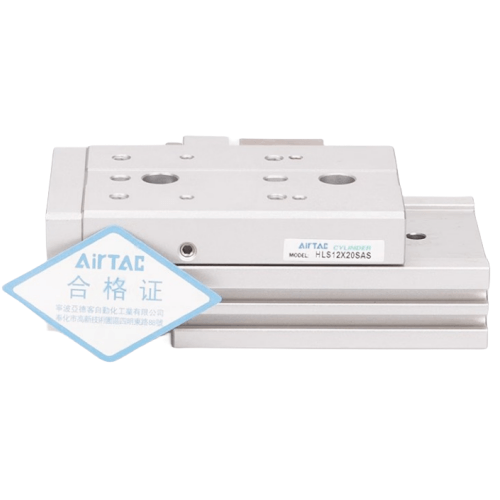

Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS12X30S
The AirTAC Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS12X30S is a genuine HLS slide-table cylinder: a double-acting dual-rod air cylinder integrated with a cross-roller guide so the table travels straight with high rigidity and low deflection. A floating joint spares the rod from side torque; the magnet is fitted as standard.
- TypeSlide-table, double acting
- Guidecross-roller guide
- Operating pressure0.15 - 0.7 MPa (22 - 100 psi)
- Port sizeM5x0.8
- CushionBumper (+ shock-absorber option)
- Magnet / sensorStandard; CMSH/DMSH/EMSH
- ThreadPT
About the Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS12X30S
The HLS12X30S is a double-acting dual-rod slide-table cylinder that integrates an air cylinder with a cross-roller linear guide. The cross-roller guide provides high precision, rigidity, and low deflection for straight-line travel. The dual rod doubles thrust, and a floating joint protects the rod from side torque. With bore 12 and stroke 30 mm, this model offers moderate push force for compact guided motion over a longer travel range.
This genuine AirTAC part includes a standard magnet for position sensing using CMSH, DMSH, or EMSH sensor switches mounted in the body slots. The basic bumper cushion provides end-stop protection at both ends of stroke. We confirm thrust values, dimensions, and load/moment ratings from the AirTAC datasheet or on-page spec table on request.
Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS12X30S Technical Specifications
| Model | Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS12X30S |
|---|---|
| Type | Slide-table cylinder, double acting, dual rod |
| Series / guide | HLS (cross-roller guide) |
| Port size | M5x0.8 (PT thread) |
| Fluid | Air, filtered to 40 um |
|---|---|
| Operating pressure | 0.15 - 0.7 MPa (22 - 100 psi) |
| Proof pressure | 1.2 MPa (175 psi) |
| Temperature | -20 to 70 C |
| Speed range | 50 - 500 mm/s (meter-out) |
| Cushion | Bumper; shock-absorber / adjustable-stopper options |
| Magnet / sensor | Standard; CMSH, DMSH, EMSH |
Specifications follow the official AirTAC HL slide-table data. Max working pressure is 0.7 MPa. The table rides on an integrated linear guide — do not apply strong impact or large moment. Allowable load and moment are published as tables and curves, and overall dimensions vary per stroke — ask us and we confirm from the datasheet.
How to choose
Choose bore 12 when you need moderate thrust in a compact cross-roller guided slide; a larger bore gives more push force. The HLS cross-roller guide suits applications demanding the highest precision and rigidity, while HLQ ball-bearing tables offer anti-rust and dust-proof benefits, HLH provides precision-assembly straightness with three port groups, and HLF reduces body height. This basic model uses bumper cushioning at both stroke ends; adjustable rubber stopper or shock-absorber options are available if needed. Select the 30 mm stroke from the bore 12 range in the datasheet, and confirm allowable load, moment, and kinetic energy from the published tables and deflection curves with us.
Applications
Pick-and-Place Head
Cross-roller precision guides small part placement with minimal deflection over the 30 mm travel range.
Small-Parts Transfer
Moves parts between stations with rigid cross-roller guidance and bumper end-stop cushioning.
Assembly Positioning
30 mm stroke positions workpieces at assembly stations with repeatable, precise guided travel.
FAQ
How do I choose between HLS cross-roller and HLQ ball-bearing slide tables?
HLS cross-roller guides offer the highest precision, rigidity, and load capacity. HLQ ball-bearing guides provide anti-rust and dust-proof benefits. Choose HLS when precision and rigidity are the priority.
How is allowable load and moment confirmed for the HLS12X30S?
Allowable load, moment, and kinetic energy are published in tables and deflection curves in the AirTAC datasheet. We confirm these values from the datasheet or on-page spec table for your specific application.
