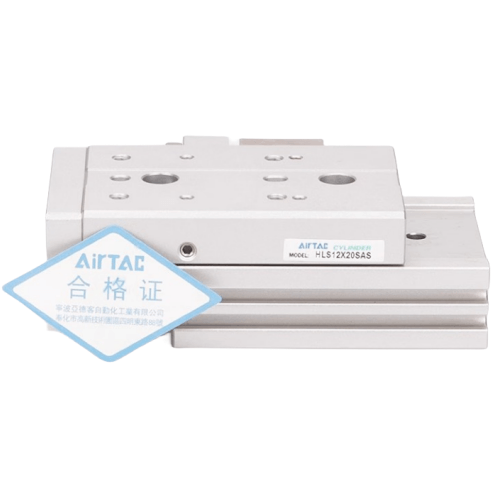

Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS12X75SA
The AirTAC Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS12X75SA is a genuine HLS slide-table cylinder: a double-acting dual-rod air cylinder integrated with a cross-roller guide so the table travels straight with high rigidity and low deflection. A floating joint spares the rod from side torque; the magnet is fitted as standard.
- TypeSlide-table, double acting
- Guidecross-roller guide
- Operating pressure0.15 - 0.7 MPa (22 - 100 psi)
- Port sizeM5x0.8
- CushionBumper (+ shock-absorber option)
- Magnet / sensorStandard; CMSH/DMSH/EMSH
- ThreadPT
About the Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS12X75SA
The HLS12X75SA is a double-acting dual-rod slide-table cylinder that integrates an air cylinder with a cross-roller linear guide, so the moving table travels straight with high precision and rigidity. The dual rod doubles the thrust while a floating joint spares the rod from side torque, giving stable push and pull at this 12mm bore and 75mm stroke.
This is a genuine AirTAC part. The magnet is standard, with magnetic-switch slots on the body accepting CMSH/DMSH/EMSH sensors. We confirm thrust, dimensions and load-moment values from the datasheet or on-page table on request.
Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS12X75SA Technical Specifications
| Model | Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS12X75SA |
|---|---|
| Type | Slide-table cylinder, double acting, dual rod |
| Series / guide | HLS (cross-roller guide) |
| Port size | M5x0.8 (PT thread) |
| Fluid | Air, filtered to 40 um |
|---|---|
| Operating pressure | 0.15 - 0.7 MPa (22 - 100 psi) |
| Proof pressure | 1.2 MPa (175 psi) |
| Temperature | -20 to 70 C |
| Speed range | 50 - 500 mm/s (meter-out) |
| Cushion | Bumper; shock-absorber / adjustable-stopper options |
| Magnet / sensor | Standard; CMSH, DMSH, EMSH |
Specifications follow the official AirTAC HL slide-table data. Max working pressure is 0.7 MPa. The table rides on an integrated linear guide — do not apply strong impact or large moment. Allowable load and moment are published as tables and curves, and overall dimensions vary per stroke — ask us and we confirm from the datasheet.
How to choose
A 12mm bore gives a moderate thrust step up from the small bores, with bigger push as the bore grows; exact thrust is shown in the spec table. The HLS cross-roller guide suits applications needing high precision, rigidity and low deflection over the 75mm stroke. This unit carries the A adjuster - adjustable rubber stoppers at both ends for cushion control. Thread is PT. For allowable load and moment sizing we route you to the published tables and deflection curves.
Applications
Pick-and-place head
Cross-roller precision guides a small vacuum pickup across the 75mm stroke for repeatable component placement on a PCB assembly line.
Small-parts transfer
Moves a workpiece holder between two stations with low deflection, keeping the part registered during indexing on a light assembly machine.
Gripper traverse
Feeds a parallel gripper laterally between load and unload positions where the cross-roller guide keeps the jaw alignment accurate cycle after cycle.
FAQ
What does the A in HLS12X75SA mean?
A is the adjuster code: adjustable rubber stoppers at both ends. The bore is 12mm, stroke 75mm, and the magnet is standard; thread is PT.
What is the maximum working pressure for this slide table?
Maximum working pressure is 0.7 MPa. Operating range for the 12mm bore is 0.15-0.7 MPa (22-100 psi), with meter-out speed kept at 50-500 mm/s.
