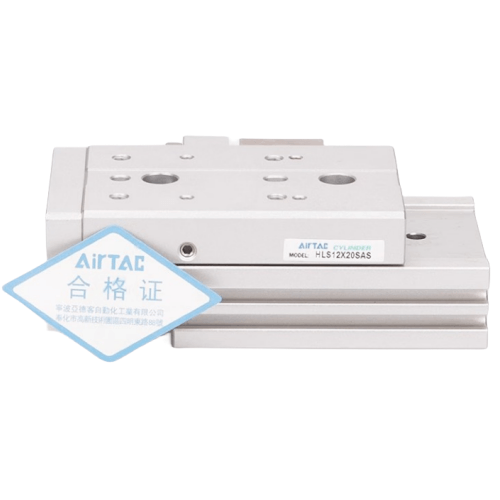

Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS16X125S
The AirTAC Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS16X125S is a genuine HLS slide-table cylinder: a double-acting dual-rod air cylinder integrated with a cross-roller guide so the table travels straight with high rigidity and low deflection. A floating joint spares the rod from side torque; the magnet is fitted as standard.
- TypeSlide-table, double acting
- Guidecross-roller guide
- Operating pressure0.15 - 0.7 MPa (22 - 100 psi)
- Port sizeM5x0.8
- CushionBumper (+ shock-absorber option)
- Magnet / sensorStandard; CMSH/DMSH/EMSH
- ThreadPT
About the Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS16X125S
The HLS16X125S is a genuine AirTAC cross-roller slide-table cylinder combining a double-acting air cylinder with a precision cross-roller linear guide. At bore 16 and stroke 125, the dual-rod design doubles thrust while the floating joint protects the rods from side torque, keeping the table on a straight, low-deflection path over the longer travel. The cross-roller guide provides the highest rigidity and load capacity in the HL family.
A magnet is fitted as standard, accepting CMSH, DMSH, or EMSH sensor switches in the body slots. This model uses the basic bumper cushion at both ends of stroke. We confirm the exact thrust, dimensions, and load-moment ratings from the AirTAC datasheet or on-page spec table on request.
Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS16X125S Technical Specifications
| Model | Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS16X125S |
|---|---|
| Type | Slide-table cylinder, double acting, dual rod |
| Series / guide | HLS (cross-roller guide) |
| Port size | M5x0.8 (PT thread) |
| Fluid | Air, filtered to 40 um |
|---|---|
| Operating pressure | 0.15 - 0.7 MPa (22 - 100 psi) |
| Proof pressure | 1.2 MPa (175 psi) |
| Temperature | -20 to 70 C |
| Speed range | 50 - 500 mm/s (meter-out) |
| Cushion | Bumper; shock-absorber / adjustable-stopper options |
| Magnet / sensor | Standard; CMSH, DMSH, EMSH |
Specifications follow the official AirTAC HL slide-table data. Max working pressure is 0.7 MPa. The table rides on an integrated linear guide — do not apply strong impact or large moment. Allowable load and moment are published as tables and curves, and overall dimensions vary per stroke — ask us and we confirm from the datasheet.
How to choose
Bore 16 provides moderate thrust suitable for general guided-slide tasks. The HLS cross-roller guide is the choice when maximum rigidity and precision matter more than the anti-rust benefits of HLQ or the reduced height of HLF. The 125 mm stroke covers longer traverse applications such as part transfer across multiple stations. This model has the basic bumper cushion; if you need shock absorbers or adjustable rubber stoppers, consider the A or B adjuster variants. Thread is PT as standard; G or NPT available on request.
For allowable load, moment, and kinetic energy over the 125 mm stroke, contact us and we will verify from the published Wmax, Emax, and moment tables plus deflection curves.
Applications
Multi-Station Transfer
Moves a workpiece across several assembly stations along the 125 mm stroke, with cross-roller guidance maintaining straight travel over the longer distance.
Sorting Diverter
Pushes items from a main conveyor onto a branch lane with the precision and rigidity needed for consistent positioning over the full 125 mm travel.
Tool Change Position
Indexes a tooling head between two fixed positions 125 mm apart, where cross-roller stiffness ensures the tool arrives at the same point every cycle.
FAQ
Does this model include shock absorbers or adjustable stoppers?
No. HLS16X125S uses the basic bumper cushion at both ends. If you need shock absorbers (B-type) or adjustable rubber stoppers (A-type), look for the HLS16X125SA, HLS16X125SB, or the AS/BS/AF/BF variants. B-type adjusters are available on bore 16 and above.
How is load and moment capacity confirmed for the 125 mm stroke?
Allowable load, moment, and kinetic energy are published as Wmax, Emax, and moment tables with deflection curves in the AirTAC datasheet. We confirm these values from the published tables for your specific mounting orientation and operating conditions on request. Never exceed the published ratings.
