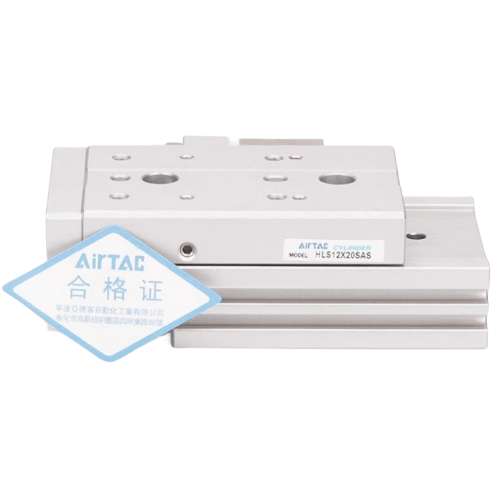

Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS16X50SAS
The AirTAC Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS16X50SAS is a genuine HLS slide-table cylinder: a double-acting dual-rod air cylinder integrated with a cross-roller guide so the table travels straight with high rigidity and low deflection. A floating joint spares the rod from side torque; the magnet is fitted as standard.
- TypeSlide-table, double acting
- Guidecross-roller guide
- Operating pressure0.15 - 0.7 MPa (22 - 100 psi)
- Port sizeM5x0.8
- CushionBumper (+ shock-absorber option)
- Magnet / sensorStandard; CMSH/DMSH/EMSH
- ThreadPT
About the Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS16X50SAS
The HLS16X50SAS is a double-acting dual-rod slide-table cylinder with a cross-roller linear guide, bore 16 mm and stroke 50 mm. The integrated cross-roller guide keeps the moving table on a precise straight path with high rigidity and low deflection, while the dual rod doubles thrust and a floating joint protects the rod from side torque. An adjustable rubber stopper on the extension side lets you fine-tune the extend end-position.
This is a genuine AirTAC part with a standard magnet fitted for position sensing (CMSH, DMSH or EMSH switches in the body slots). We confirm thrust, dimensions and allowable load-moment from the AirTAC datasheet or the on-page spec table on request.
Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS16X50SAS Technical Specifications
| Model | Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS16X50SAS |
|---|---|
| Type | Slide-table cylinder, double acting, dual rod |
| Series / guide | HLS (cross-roller guide) |
| Port size | M5x0.8 (PT thread) |
| Fluid | Air, filtered to 40 um |
|---|---|
| Operating pressure | 0.15 - 0.7 MPa (22 - 100 psi) |
| Proof pressure | 1.2 MPa (175 psi) |
| Temperature | -20 to 70 C |
| Speed range | 50 - 500 mm/s (meter-out) |
| Cushion | Bumper; shock-absorber / adjustable-stopper options |
| Magnet / sensor | Standard; CMSH, DMSH, EMSH |
Specifications follow the official AirTAC HL slide-table data. Max working pressure is 0.7 MPa. The table rides on an integrated linear guide — do not apply strong impact or large moment. Allowable load and moment are published as tables and curves, and overall dimensions vary per stroke — ask us and we confirm from the datasheet.
How to choose
Choose the 16 mm bore when you need moderate thrust in a compact cross-roller guided slide; a bigger bore gives more push. The 50 mm stroke falls within the bore-16 stroke table. The AS adjuster adds an adjustable rubber stopper on the extension side for fine extend-position control. Ports are 1/8" and the standard thread is PT. We confirm allowable load, moment and deflection curves from the published AirTAC tables.
Applications
Pick-and-Place Head
Mount a small gripper on the table for precise part pick-up and placement with repeatable end-positioning.
Small-Parts Transfer
Transfer small components between stations with the cross-roller guide keeping travel straight and deflection low.
Assembly Stage Stopper
Position and hold a workpiece at an assembly station; the adjustable rubber stopper sets the extend end position precisely.
FAQ
What does the AS adjuster code mean on HLS16X50SAS?
AS means an adjustable rubber stopper is fitted on the extension side. You can fine-tune the extend end-position without changing the stroke; the retract end uses the standard bumper.
What is the maximum working pressure for this bore?
The maximum working pressure is 0.7 MPa (100 psi). Operating pressure for the 16 mm bore is 0.15-0.7 MPa (22-100 psi). Keep meter-out speed control at or below 500 mm/s.
