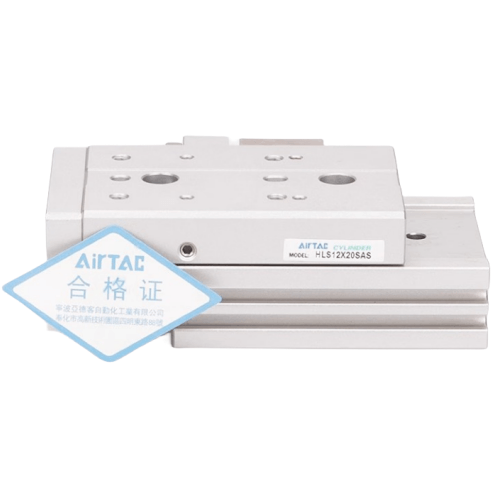

Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS16X75SA
The AirTAC Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS16X75SA is a genuine HLS slide-table cylinder: a double-acting dual-rod air cylinder integrated with a cross-roller guide so the table travels straight with high rigidity and low deflection. A floating joint spares the rod from side torque; the magnet is fitted as standard.
- TypeSlide-table, double acting
- Guidecross-roller guide
- Operating pressure0.15 - 0.7 MPa (22 - 100 psi)
- Port sizeM5x0.8
- CushionBumper (+ shock-absorber option)
- Magnet / sensorStandard; CMSH/DMSH/EMSH
- ThreadPT
About the Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS16X75SA
The AirTAC HLS16X75SA is a double-acting dual-rod slide-table cylinder with a cross-roller linear guide integrated into the body. The cross-roller bearing delivers high rigidity and precise straight travel across the 75 mm stroke, and the dual rod doubles thrust for moderate force at bore 16. A floating joint prevents side torque on the rod. Adjustable rubber stoppers at both ends let you fine-tune the end positions.
This genuine AirTAC part includes a standard magnet for position sensing via CMSH, DMSH, or EMSH switches in the body slots. Typical materials include aluminium-alloy body and table, carbon-steel and stainless rods, NBR seals, and a TPU bumper. We confirm exact thrust, dimensions, and allowable load-moment from the published datasheet or on-page table on request.
Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS16X75SA Technical Specifications
| Model | Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS16X75SA |
|---|---|
| Type | Slide-table cylinder, double acting, dual rod |
| Series / guide | HLS (cross-roller guide) |
| Port size | M5x0.8 (PT thread) |
| Fluid | Air, filtered to 40 um |
|---|---|
| Operating pressure | 0.15 - 0.7 MPa (22 - 100 psi) |
| Proof pressure | 1.2 MPa (175 psi) |
| Temperature | -20 to 70 C |
| Speed range | 50 - 500 mm/s (meter-out) |
| Cushion | Bumper; shock-absorber / adjustable-stopper options |
| Magnet / sensor | Standard; CMSH, DMSH, EMSH |
Specifications follow the official AirTAC HL slide-table data. Max working pressure is 0.7 MPa. The table rides on an integrated linear guide — do not apply strong impact or large moment. Allowable load and moment are published as tables and curves, and overall dimensions vary per stroke — ask us and we confirm from the datasheet.
How to choose
Bore 16 delivers moderate thrust; a larger bore gives more push. The HLS cross-roller guide is the choice for maximum rigidity and minimal deflection; select HLQ for ball-bearing anti-rust dust-proof service, HLH for miniature roller-ball precision, or HLF for a low-height body. Stroke 75 mm must be within the bore 16 stroke table. This model adds adjustable rubber stoppers at both ends for fine end-position tuning on top of bumper cushioning. Thread is PT; request G or NPT if needed. We confirm allowable load, moment, and kinetic energy from the published tables and deflection curves.
Applications
Pick-and-Place Head
Mount a gripper for precise pick-and-place of small parts across 75 mm with rubber stoppers fine-tuning both end positions.
Small-Parts Transfer
Transfer components between stations with the cross-roller guide ensuring repeatable straight travel and adjustable stops.
Assembly Stage Index
Index a workpiece between assembly stations; the cross-roller guide holds tight tolerances and rubber stoppers set the end positions.
FAQ
What does the A adjuster code mean on the HLS16X75SA?
A means adjustable rubber stoppers at both ends, letting you fine-tune the extend and retract end positions beyond the standard bumper cushioning. AS would add the stopper on the extension side only; AF on the retraction side only.
Is the magnet optional on the HLS16X75SA?
No, the magnet is standard on every HL slide table - the S in the model code confirms it. Position sensing uses CMSH, DMSH, or EMSH switches mounted in the magnetic-switch slots on the body. The magnet cannot be declined.
