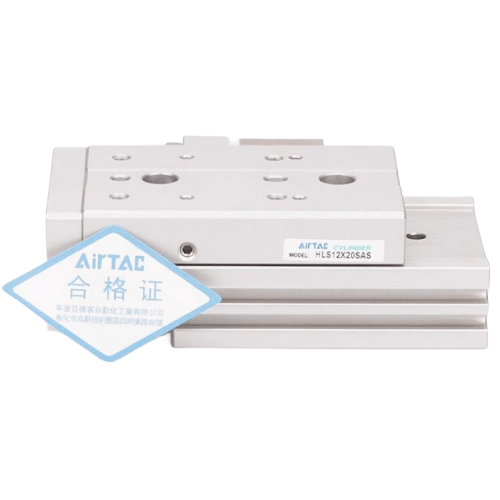

Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS20X50SBS
The AirTAC Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS20X50SBS is a genuine HLS slide-table cylinder: a double-acting dual-rod air cylinder integrated with a cross-roller guide so the table travels straight with high rigidity and low deflection. A floating joint spares the rod from side torque; the magnet is fitted as standard.
- TypeSlide-table, double acting
- Guidecross-roller guide
- Operating pressure0.15 - 0.7 MPa (22 - 100 psi)
- Port sizeM5x0.8
- CushionBumper (+ shock-absorber option)
- Magnet / sensorStandard; CMSH/DMSH/EMSH
- ThreadPT
About the Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS20X50SBS
The AirTAC HLS20X50SBS is a double-acting dual-rod guided slide-table cylinder that pairs an air cylinder with a cross-roller linear guide. The cross-roller guide provides high precision, rigidity, and low deflection so the table travels straight under lateral load. A 20 mm bore delivers higher thrust for a bigger bore, and the 50 mm stroke suits compact positioning moves. The dual rod doubles thrust, and a floating joint protects the rod from side torque.
This is a genuine AirTAC part; the magnet is standard for position sensing. CMSH, DMSH, and EMSH sensor switches fit the magnetic-switch slots on the body. We confirm exact thrust, dimensions, and load-moment figures from the AirTAC datasheet or on-page spec table on request.
Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS20X50SBS Technical Specifications
| Model | Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS20X50SBS |
|---|---|
| Type | Slide-table cylinder, double acting, dual rod |
| Series / guide | HLS (cross-roller guide) |
| Port size | M5x0.8 (PT thread) |
| Fluid | Air, filtered to 40 um |
|---|---|
| Operating pressure | 0.15 - 0.7 MPa (22 - 100 psi) |
| Proof pressure | 1.2 MPa (175 psi) |
| Temperature | -20 to 70 C |
| Speed range | 50 - 500 mm/s (meter-out) |
| Cushion | Bumper; shock-absorber / adjustable-stopper options |
| Magnet / sensor | Standard; CMSH, DMSH, EMSH |
Specifications follow the official AirTAC HL slide-table data. Max working pressure is 0.7 MPa. The table rides on an integrated linear guide — do not apply strong impact or large moment. Allowable load and moment are published as tables and curves, and overall dimensions vary per stroke — ask us and we confirm from the datasheet.
How to choose
Choose a larger bore when you need more push; the 20 mm bore gives higher thrust for firmer positioning. The HLS cross-roller guide offers the highest precision and rigidity among the HL sub-families -- pick it when lateral load and deflection matter most. For lighter, anti-rust duty consider the HLQ ball-bearing tables, or the HLH miniature roller-ball for compact multi-port layouts. The BS adjuster on this model fits a shock absorber on the extension side to soften end-of-stroke impact. Stroke must stay within the bore's published range. Load, moment, and kinetic-energy limits come from the published Wmax/Emax tables and deflection curves -- contact us for confirmed values.
Applications
Pick-and-Place Head
Mounts a gripper for precise component placement where the cross-roller guide keeps lateral deflection to a minimum.
Small-Parts Transfer
Shifts lightweight workpieces between stations on a 50 mm stroke with repeatable end-position accuracy.
Assembly Stage Stop
Positions a sub-assembly for pressing or insertion with a shock absorber cushioning the extension-side stop.
FAQ
What does the BS adjuster code mean on this model?
BS indicates a shock absorber fitted on the extension side of the stroke, damping impact at the forward end. Bore 20 supports B-type adjusters; bore 6 does not.
What is the maximum operating pressure for the HLS20?
The maximum working pressure is 0.7 MPa (100 psi). Bore 20 operates from 0.15 to 0.7 MPa (22-100 psi). Never exceed 0.7 MPa.
