Airtac B52-HRQ Copper-Free Rotary Cylinder B52-HRQ30A
$257.52
Regular price
$265.02
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
B52-HRQ30A
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

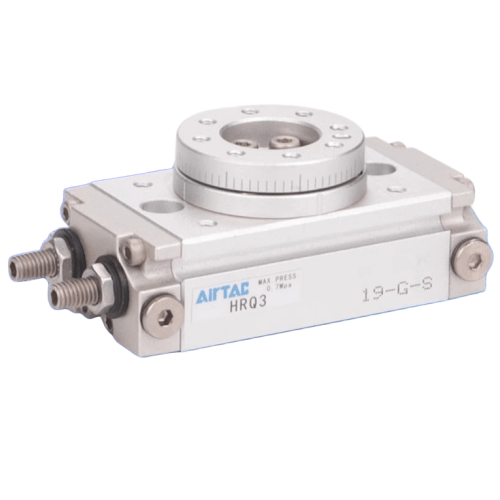

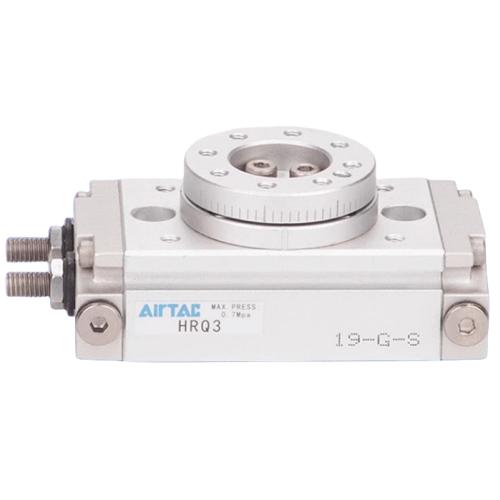

AirTAC B52-HRQ Series Copper-Free Rotary Cylinder (B52-HRQ30A)
- Model: B52-HRQ30A
- Type: 180° rotation cylinder with copper-free construction
- Bore size: Ø30 mm
- Stroke: Standard 90°×2 (180° total rotation)
- Operating pressure: 0.1–0.8 MPa
- Rotation torque: 1.2 N·m @ 0.5 MPa
- Ambient temperature: -20℃ to 80℃
- Piston material: Hard-anodized aluminum alloy
- Seal material: NBR + Polyurethane hybrid
- Mounting options: Side flange (ISO 15552 compatible)
- Weight: 1.56 kg (without accessories)
- Dimensions: 220mm(L) × 80mm(W) × 85mm(H)
- Repeat positioning accuracy: ±0.5°
- Buffer type: Adjustable pneumatic cushioning
- Port size: G1/8 (NPT1/8 optional)
- Protection rating: IP54 (standard)
Copper-free rotary actuator designed for cleanroom and chemical environments where copper contamination must be eliminated. Features dual-piston torque amplification and precision angular feedback slots. Requires dry lubricated air (ISO 8573-1 Class 3-4-3).
Typical Applications:
- Semiconductor wafer handling robots
- Pharmaceutical vial orientation systems
- Food packaging line gripper rotation
- Battery assembly positioning arms
- Optical lens polishing equipment
Installation note:
Maximum lateral load ≤15N. For vertical mounting, use supplemental support brackets.
Lubricate spline shaft with PAG grease (NLGI #2) every 500,000 cycles.
| Property | Property Value |
|---|---|
| sku | B52-HRQ30A |
