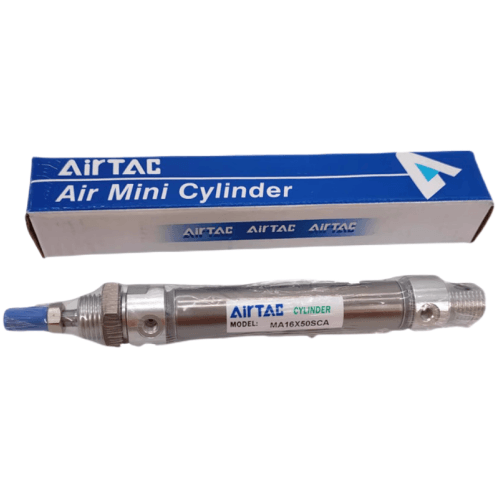

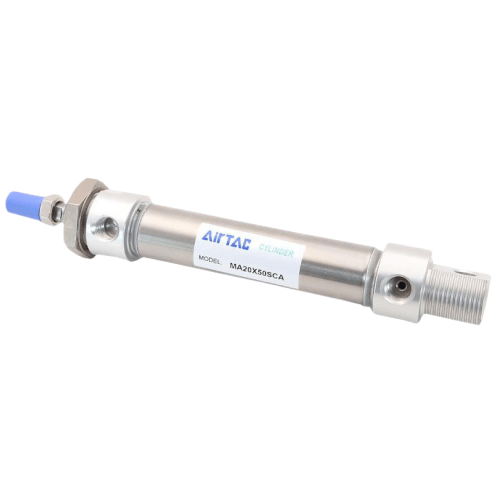

Airtac B52-MA Copper-Free Stainless Steel Mini Cylinder B52-MA32X200SU
The AirTAC Airtac B52-MA Copper-Free Stainless Steel Mini Cylinder B52-MA32X200SU is a genuine double acting standard round-body mini air cylinder with a Ø0mm bore and 200mm stroke, PT/G air ports and a stainless-steel barrel with a hard-chrome-plated rod for reliable, mildly corrosion-resistant service.
- BoreØ0 mm
- Stroke200 mm
- Port sizePT/G
- Acting typeDouble acting
- Rod thread
- CushionFixed anti-impact bumper pads
About the Airtac B52-MA Copper-Free Stainless Steel Mini Cylinder B52-MA32X200SU
A 200 mm stroke on a 32 mm stainless barrel makes the MA32X200SU the long-travel pick of the MA range: double acting, with fixed bumper pads softening stroke-end impact, wrapped in a riveted round body that resists washdown far better than painted-steel minis. At 0.5 MPa it pushes 402.2 N and pulls 345.6 N.
Plan on roughly 241 N of real work at 0.5 MPa, about 60 percent of the push rating, so the rod never runs at its ceiling; vertically that equals lifting about 20 kg with a 2:1 margin. The magnet ships standard, so CMSG, DMSG or EMSG switches clamp on without ordering a special piston. Supply pressure can span 0.15-1.0 MPa (22-145 psi) at 30-800 mm/s. A flat-end U back cover keeps the tail fixed where a pivoting clevis is not needed.
Airtac B52-MA Copper-Free Stainless Steel Mini Cylinder B52-MA32X200SU Technical Specifications
| Model | Airtac B52-MA Copper-Free Stainless Steel Mini Cylinder B52-MA32X200SU |
|---|---|
| Series | MA mini cylinder |
| Bore size | Ø0 mm |
| Stroke | 200 mm |
| Acting type | Double acting |
| Port size | PT/G |
| Rod thread |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 800 mm/s |
| Cushion | Fixed anti-impact bumper pads |
| Max standard stroke | Up to 500 mm |
Specifications follow the official AirTAC MA-series datasheet. Barrel: stainless-steel tube (round-body, riveted rolling-packed construction); piston rod: carbon steel with 20µm hard-chrome plating; covers: aluminium alloy. Thread options: PT (blank) / G / NPT. Every MA-series cylinder ships with a built-in magnet for CMSG / DMSG / EMSG position sensors.
Theoretical Output Force (Ø0mm)
| Pressure | Push force | Pull force |
|---|---|---|
| 0.5 MPa | 0 N | 0 N |
| 0.7 MPa | 0 N | 0 N |
| Max (@1.0 MPa) | 0 kgf | |
Actual usable force is lower than theoretical due to friction and back-pressure. Size with a safety margin.
Model Code: Airtac B52-MA Copper-Free Stainless Steel Mini Cylinder B52-MA32X200SU
| MA | Standard round-body mini cylinder (double-acting). |
|---|---|
| 0 | Bore size in mm. |
| ×200 | Stroke length in mm. |
| -S | Built-in magnet for CMSG / DMSG / EMSG sensors (standard on MA series). |
| CA / U / CM | Back-cover type: CA pivot, U flat-end, CM round-end. |
MA-family variants: MA / MAC (double acting ±cushion), MSA / MTA (single acting push / pull), MAD / MACD (double rod ±cushion), MAJ / MACJ (adjustable stroke ±cushion), MAR (cushioned with integrated F/U mount). Mounting accessories: FA flange, LB foot, SDB pivot; plus I and Y knuckles. Thread PT (blank) / G / NPT.
Where the Airtac B52-MA Copper-Free Stainless Steel Mini Cylinder B52-MA32X200SU Is Used
Packaging line pusher
Pushes cartons off a 1.5 m conveyor section; the 200 mm stroke clears a full lane and 402 N at 0.5 MPa moves 20 kg loads briskly.
Hopper slide gate
Opens and closes a discharge gate at the bottom of a powder hopper; the stainless barrel shrugs off dust and washdowns between batches.
Pallet line stopper
A CMSG switch on the standard magnet confirms stopper-up position on an assembly pallet line; the flat-end U cover bolts flush to the frame.
Is the Airtac B52-MA Copper-Free Stainless Steel Mini Cylinder B52-MA32X200SU the Right Cylinder?
Size both ways: the 25 mm bore delivers 245.3 N push at 0.5 MPa while the 40 mm bore reaches 628.3 N, so step up if your load approaches the 241 N planning figure. At 200 mm of extension, rod bending under side load becomes real - keep the rod aligned or add external guide rails. LB foot or FA flange mounting suits this length. Note the piston drifts freely when air is removed or the valve centres, so fit a rod lock or pilot check valve for a suspended load.
Quick checklist
- ✓ Required force at your working pressure
- ✓ Stroke and mounting space
- ✓ Port/thread type (PT / G / NPT)
- ✓ Magnet (-S) is standard for sensors
- ✓ Back cover (CA/U/CM) & mount (FA/LB/SDB)
Installation & Maintenance Notes
- check Use clean air filtered to 40µm or finer.
- check Keep within 0.15 – 1.0 MPa operating pressure.
- check Avoid side load on the piston rod.
- check Do not dismantle the riveted front/back covers.
- check Bumper models: keep speed within the rated range.
- check Installation by qualified personnel per AirTAC docs.
Airtac B52-MA Copper-Free Stainless Steel Mini Cylinder B52-MA32X200SU FAQ
At 0.5 MPa it pushes 402.2 N and pulls 345.6 N; at 0.7 MPa that rises to 563.0 N push and 483.8 N pull, with a theoretical maximum of 82 kgf at 1.0 MPa. The bore is 32 mm, the rod 12 mm, ports are 1/8" and the rod thread is M10x1.25.
Yes - every MA cylinder carries a built-in magnet as standard, so CMSG, DMSG and EMSG reed switches mount directly on the stainless barrel for end-of-stroke or mid-stroke detection with no special-order piston.
