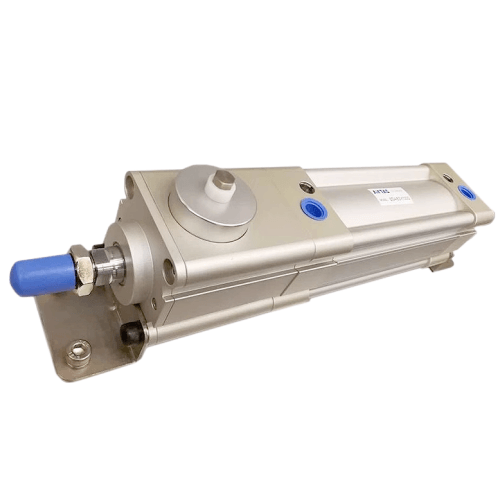

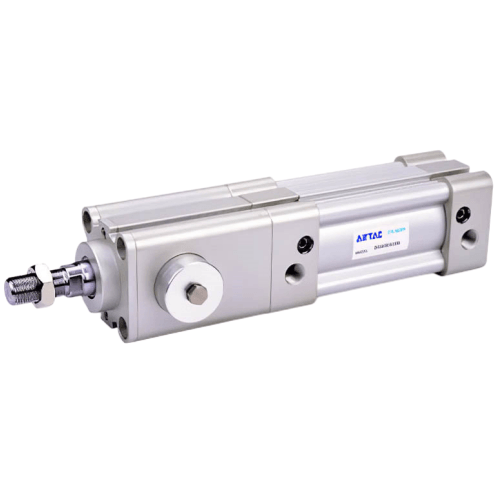

Airtac BSAI Locking Clamp Cylinder BSAI63X600S
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
1. A derivative series combining standard cylinders with integrated locking mechanisms;
2. Capability of position locking and braking at any intermediate stroke position;
3. Optimized locking design ensuring consistent holding force regardless of piston movement direction.
Category: Locking Cylinders | Brand: AirTAC | Series: BSAI
AirTAC BSAI Locking Clamp Cylinder BSAI63X600S Technical Details
- Model: BSAI63X600S
- Bore size: 63mm
- Stroke: 600mm
- Operating pressure: 0.05–0.9 MPa
- Temperature range: -10℃ to 80℃
- Buffer type: Adjustable hydraulic cushion (both ends)
- Mounting style: Fixed base with integrated clamp lock
- Locking force: 1,600N (max)
- Repeat positioning accuracy: ±0.5mm
- Port size: G1/8 (ISO standard)
- Seal material: Polyurethane (PU) with wear-resistant ring
- Weight: 5.8kg (including mounting accessories)
- Dimensions: 830mm(L) × 78mm(W) × 78mm(H)
- Rod thread: M20×1.5 (external)
- Protection rating: IP54 (standard), IP67 optional
Heavy-duty locking cylinder with mechanical clamp mechanism for mid-stroke position holding. Features double-acting operation with chromium-plated piston rod (HRC 45-50 hardness) and corrosion-resistant aluminum alloy body. Integrated lock engages automatically at power loss for fail-safe operation.
- Automated welding fixture position locking
- Press machine intermediate stroke hold
- Material handling vertical load braking
- Elevator safety arrest systems
- Robotic arm emergency stop positions
Installation requirements:
Requires 0.3MPa minimum holding pressure for lock engagement.
Lubricate with ISO VG32 hydraulic oil. Max lateral load 150N.
Allow 50mm clearance behind cylinder for rod extension.
| Property | Property Value |
|---|---|
| sku | BSAI63X600S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT3/8 |
| Magnet | S-Magnetic |
| Cushion Stroke | 30mm |
| Bore Diameter | 63mm |
| Stroke | 600mm |
| Static Holding Force | 2200N |
