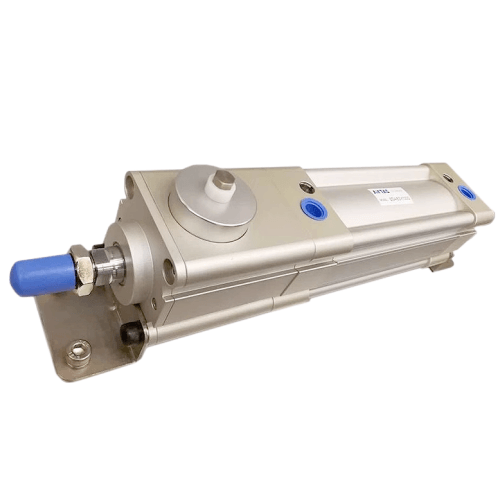

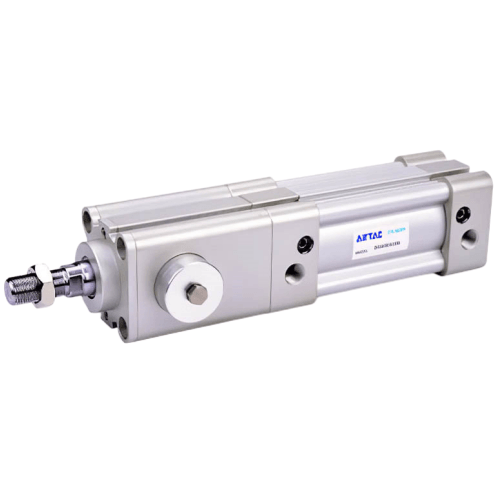

Airtac BSAI Locking Clamp Cylinder BSAI63X900
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
1. A derivative series combining standard cylinders with integrated locking mechanisms;
2. Capability of position locking and braking at any intermediate stroke position;
3. Optimized locking design ensuring consistent holding force regardless of piston movement direction.
Category: Locking Cylinders | Brand: AirTAC | Series: BSAI
AirTAC BSAI63X900 Locking Clamp Cylinder Specifications
- Model: BSAI63X900
- Type: Double-acting locking cylinder with mechanical brake
- Bore size: 63mm
- Stroke: 900mm (adjustable stroke version)
- Operating pressure: 0.1–1.0 MPa
- Locking force: ≥1500N (at 0.5MPa)
- Port size: G1/2 (NPT1/2 optional)
- Cushioning: Adjustable hydraulic buffer
- Piston rod material: Hard chrome-plated steel
- Tube material: Anodized aluminum alloy
- Seal material: HNBR/NBR (temperature-resistant variant available)
- Ambient temperature: -10℃ to 80℃ (standard), -20℃ to 120℃ (high-temp option)
- Weight: 8.6kg ±2% (excluding accessories)
- Dimensions: 1190mm(L) × 90mm(W) × 90mm(H) (full extension)
- Protection rating: IP54 (IP67 with optional scraper)
- Mounting: Standard ISO 15552 (preferred), optional foot/middle trunnion
Heavy-duty locking cylinder with fail-safe mechanical brake system, featuring dual-stage position locking through wedge mechanism. Integrated position sensor slots (M8 connector compatible) and corrosion-resistant construction make it ideal for precision positioning in harsh environments. Requires 40μm filtered lubricated air (ISO 8573-1 class 4).
- Automated welding fixture positioning
- Press machine mold clamping
- Elevator safety brake systems
- Solar panel tilt adjustment mechanisms
- Automotive assembly line tooling
Installation notes:
- Maintain ≤0.5mm/m alignment tolerance during mounting
- Apply lithium soap-based grease weekly to locking mechanism
- Allow 30-second brake engagement period after installation
- Install vibration dampers when stroke exceeds 500mm
- Magnetic sensor kit: SME-8P
- Heat-resistant seal upgrade: HRP-63
- Rod guard: RG-63/900
- Speed controller: ASC-2M
| Property | Property Value |
|---|---|
| sku | BSAI63X900 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT3/8 |
| Magnet | Non-magnetic |
| Cushion Stroke | 30mm |
| Bore Diameter | 63mm |
| Stroke | <900mm> |
| Static Holding Force | 2200N |
