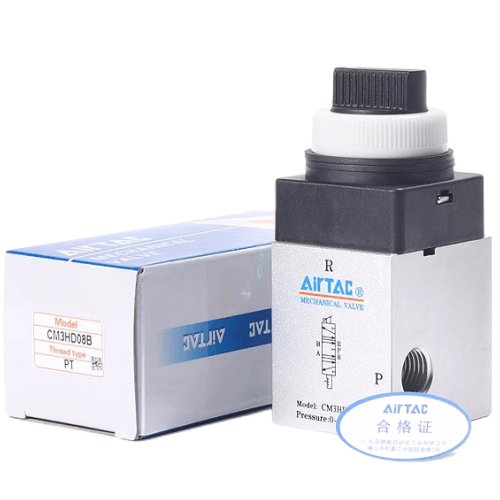

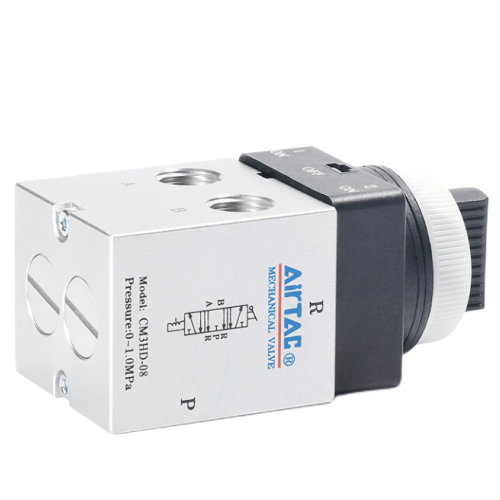

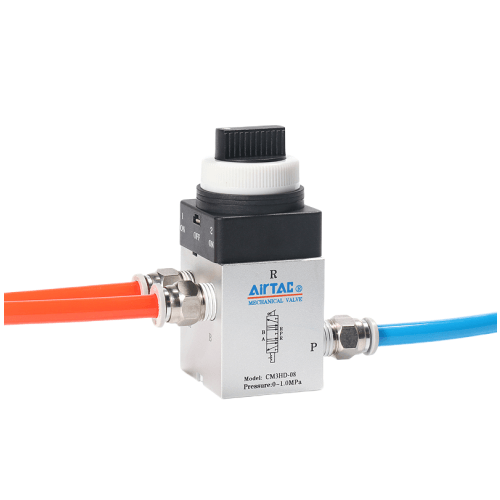

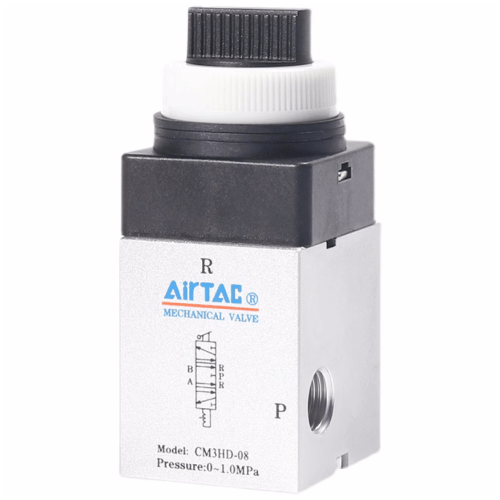

Airtac CM3HD Double Acting Selector Mechanical Valve CM3HD06G
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multiple actuator configurations for diverse application requirements.
3. Poppet valve structure ensures superior sealing performance and smooth directional switching without lubrication requirements.
4. Supports versatile mounting orientations for enhanced installation flexibility.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate durable metal actuator heads for extended service life and operational reliability.
6. CM3PMS and CM3PMX series are equipped with protective metal shrouds to prevent accidental actuation and ensure button integrity.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3HD
AirTAC CM3HD Double-Action Selector Type Mechanical Valve CM3HD06G Specifications
- Model: CM3HD06G
- Type: 3-position, 5-port double-action selector (manual/mechanical operation)
- Port size: PT1/4 (G1/4)
- Operating pressure: 0.2–0.8 MPa
- Max flow rate: 750 L/min (ANR)
- Actuation force: ≤25 N
- Weight: 380g ±5%
- Dimensions: 63mm(L) × 40mm(W) × 82mm(H)
- Body material: Aluminum alloy (anodized finish)
- Seal material: HNBR rubber (-20℃ to 120℃)
- Temperature range: -20℃ to 80℃ (with silicone seals optional up to 150℃)
- Port thread tolerance: ISO 1179-1
- Mounting options: Panel mount with M5 screws (included)
Manual override valve with positive center position lock, featuring dual exhaust ports for bidirectional control. The hardened steel actuator shaft and anti-vibration design ensure 500,000+ cycle durability. Includes dust-resistant boot cover (IP54 protection when installed). Compatible with ISO 15407-1 standards.
- Emergency stop systems in press machinery
- Directional control in hydraulic test benches
- Pneumatic fixture clamping/release mechanisms
- Material handling equipment mode selection
- Agricultural machinery manual override stations
Installation note:
Lubricate pivot points with ISO VG32 hydraulic oil before initial use.
Maximum allowable side-load on lever: 15N perpendicular to axis.
Use locknuts (not included) for vibration-prone environments.
| Property | Property Value |
|---|---|
| sku | CM3HD06G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
