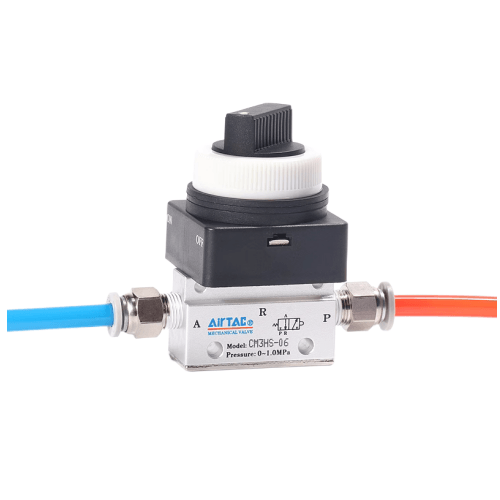

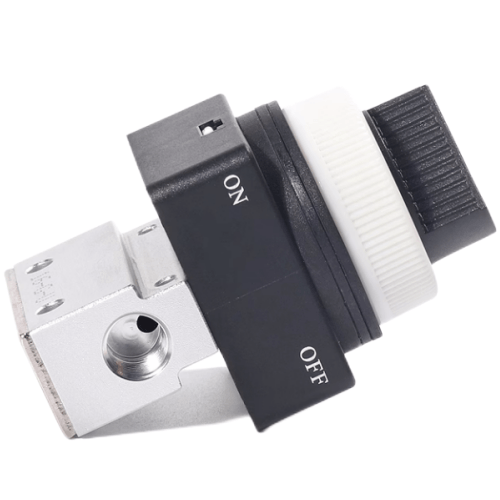

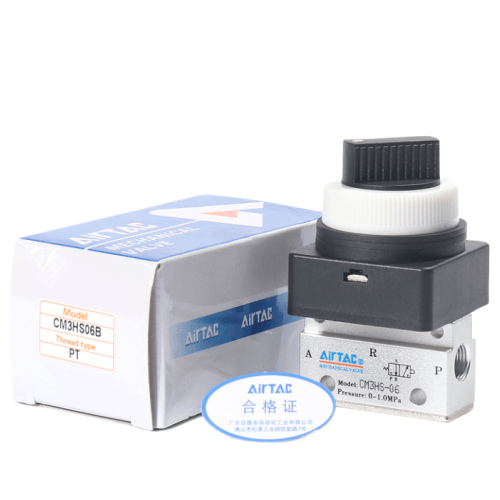

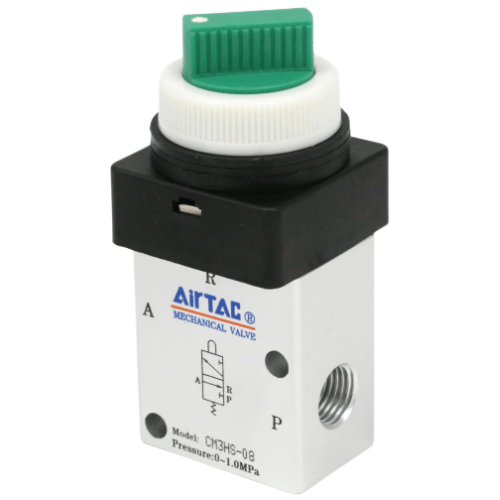

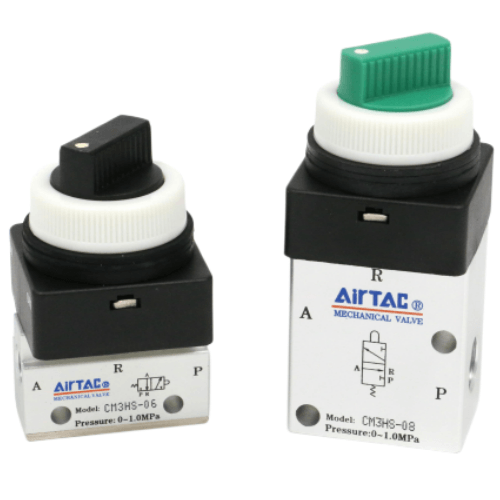

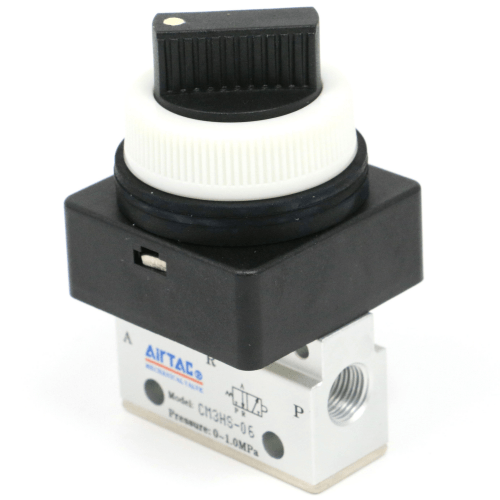

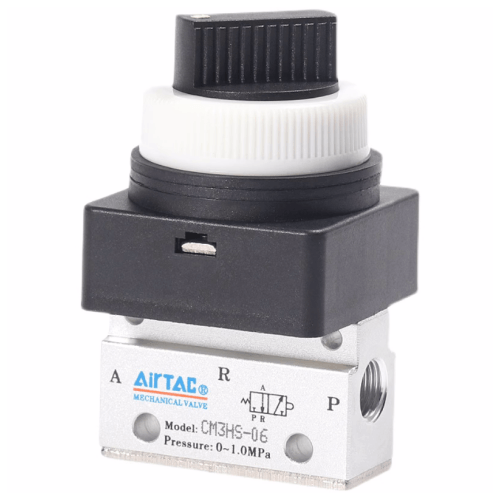

Airtac CM3HS Selector Mechanical Valve CM3HS08B
$24.41
Regular price
$31.91
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CM3HS08B
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. CM3B, CM3L, CM3V, and CM3R series require external mechanisms to provide actuation force for valve switching, suitable for position sensing or limit switch applications;
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations for optimal adaptability in varied working conditions;
3. Poppet valve design ensures excellent sealing performance, smooth directional switching, and oil-free operation;
4. Multiple mounting orientations enable flexible installation and system integration;
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for extended service life and enhanced reliability;
6. CM3PMS and CM3PMX series are equipped with metal protective covers to safeguard pushbuttons against accidental actuation and mechanical impacts, ensuring fail-safe operation.
Category: Mechanical Valves , Brand: Airtac , Series: CM3HS
Installation note:
Ensure lever movement clearance ≥60mm. For horizontal mounting,
use support bracket AMB-08 (sold separately). Lubricate pivot
point with ISO VG32 oil monthly in high-cycle applications.
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations for optimal adaptability in varied working conditions;
3. Poppet valve design ensures excellent sealing performance, smooth directional switching, and oil-free operation;
4. Multiple mounting orientations enable flexible installation and system integration;
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for extended service life and enhanced reliability;
6. CM3PMS and CM3PMX series are equipped with metal protective covers to safeguard pushbuttons against accidental actuation and mechanical impacts, ensuring fail-safe operation.
Category: Mechanical Valves , Brand: Airtac , Series: CM3HS
AirTAC CM3HS08B Selector Mechanical Valve Specifications
- Model: CM3HS08B
- Type: 3-position selector valve (Mechanical spring return)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.1–0.8 MPa
- Control method: Manual lever operation
- Port configuration: 5 ports (P, A, B, EA, EB)
- Flow rate: 650 L/min (ANR)
- Seal material: HNBR (Hydrogenated Nitrile)
- Temperature range: -20℃ to 80℃
- Body material: Anodized aluminum alloy
- Weight: 185g ±5g
- Dimensions: 50mm(L) × 35mm(W) × 25mm(H)
- Mounting options: Sub-base or direct piping
- Protection rating: IP67 (with dust cover installed)
High-flow mechanical selector valve with center exhaust function, featuring corrosion-resistant construction and ergonomic lever design. The optimized flow path reduces pressure drop by 15% compared to previous models. Requires ISO 8573-1 class 3 lubricated or non-lubricated air.
Typical Applications:
- Pneumatic circuit mode switching in automation lines
- Emergency stop system bypass control
- Semiconductor manufacturing equipment
- Hydraulic system pilot control
- Food processing machinery (NSF compliant version available)
Installation note:
Ensure lever movement clearance ≥60mm. For horizontal mounting,
use support bracket AMB-08 (sold separately). Lubricate pivot
point with ISO VG32 oil monthly in high-cycle applications.
| Property | Property Value |
|---|---|
| sku | CM3HS08B |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
