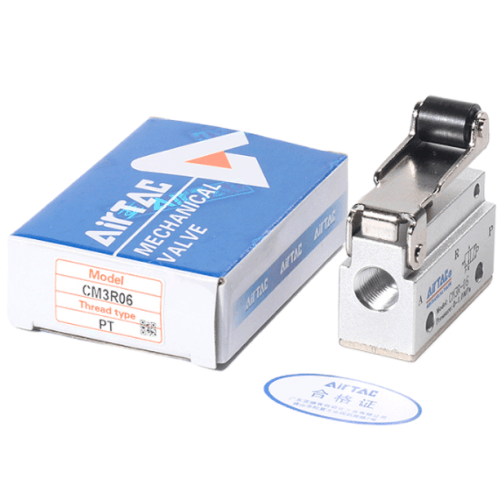

Airtac CM3R Roller Lever Mechanical Valve CM3R06
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diverse actuator configurations for versatile operational conditions;
3. Poppet valve design ensures superior sealing performance, smooth directional switching, and maintenance-free operation without lubrication;
4. Multi-position mounting capability enables flexible installation;
5. CM3L, CM3V, CM3R, and CM3Y series incorporate robust metal actuators for enhanced durability and operational reliability;
6. CM3PMS and CM3PMX series integrate metal protective shrouds to prevent accidental button contact and ensure fail-safe operation.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3R Roller Lever Mechanical Valve
AirTAC CM3R06 Roller Lever Mechanical Valve Specifications
- Model: CM3R06
- Type: 3/2-way normally closed (mechanical actuation)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.1–0.7 MPa
- Actuation force: ≤5N (lever operation)
- Lever rotation angle: 30°±2°
- Seal material: POM/NBR composite
- Body material: Anodized aluminum alloy
- Temperature range: -5℃ to 60℃
- Weight: 180g ±5g
- Dimensions: 45mm(L) × 25mm(W) × 60mm(H)
- Flow capacity: 350 l/min (ANR)
- Repeat accuracy: ±0.2mm (lever position)
- Durability: 1,000,000 cycles minimum

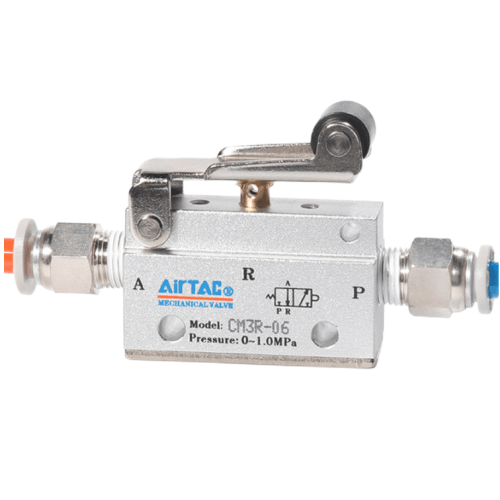

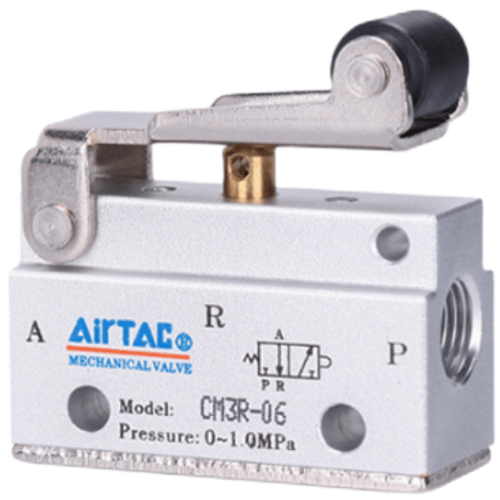

Compact roller lever valve with tactile feedback, designed for precise mechanical position detection in pneumatic systems. Features anti-corrosion treatment and wear-resistant roller design, optimized for repeated contact with machine cams or actuator flags. Requires no electrical connections, making it ideal for hazardous environments.
- Position confirmation in automated assembly lines
- Safety interlocks for machinery guards
- Cartesian robot end-stop detection
- Packaging machine product presence verification
- Conveyor system object counting
Installation note:
Adjust lever arm position within 0-90° mounting angles. Maintain 1-2mm
clearance between roller and trigger object. Lubricate pivot point
every 50,000 cycles using silicone-free grease.
| Property | Property Value |
|---|---|
| sku | CM3R06 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
