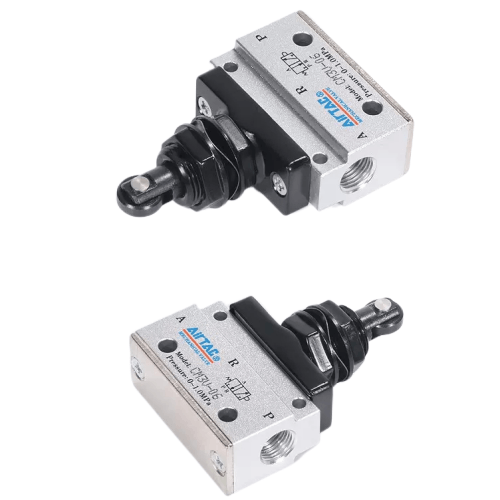

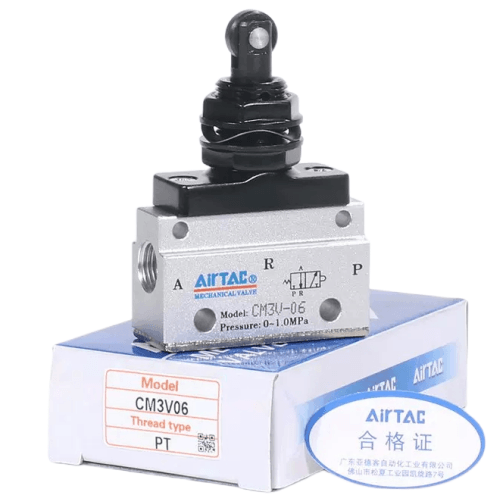

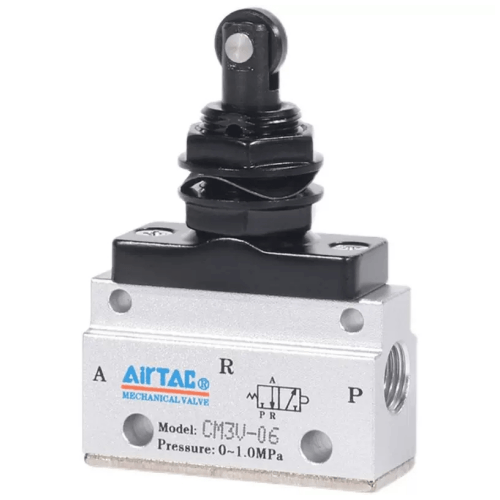

Airtac CM3V Vertical Roller Type Mechanical Valve CM3V05
2. The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multiple actuator configurations to suit diverse application requirements;
3. Poppet valve design ensures positive sealing performance, smooth directional switching, and maintenance-free operation without lubrication;
4. Versatile mounting orientations simplify installation and system integration;
5. CM3L, CM3V, CM3R, and CM3Y series employ metal actuator components for extended longevity and reliable performance in demanding environments;
6. CM3PMS and CM3PMX series incorporate integrated metal protective housing to safeguard push buttons against accidental actuation and mechanical impact, ensuring enhanced operational safety.
Category: Mechanical Valves , Brand: AIRTAC , Series: CM3V Vertical Roller Type Mechanical Valve
AirTAC CM3V05 Vertical Roller Type Mechanical Valve Specifications
- Model: CM3V05
- Type: 3/2-way normally closed (mechanical roller actuation)
- Port size: PT1/8 (G1/8) with M5 sub-ports
- Operating pressure: 0.05–0.7 MPa
- Max flow rate: 350 L/min (ANR)
- Actuation force: 1.5N minimum roller pressure
- Repeat accuracy: ±0.2mm
- Body material: Anodized aluminum alloy
- Seal material: Heat-resistant NBR (-10℃ to 100℃)
- Weight: 185g ±3%
- Dimensions: 53mm(L) × 27mm(W) × 43mm(H)
- Mounting: 2x M4 threaded holes (pitch 25mm)
- Response time: ≤20ms
- Protection rating: IP67 (dust/water resistant)
Position-sensing mechanical valve with roller lever mechanism, engineered for precise machine tool positioning and repetitive motion control. Features wear-resistant chromium-plated stem and dual-port exhaust for rapid cylinder response. Optimized for environments where electrical controls are impractical.
- CNC machine tool limit switches
- Conveyor belt package positioning systems
- Automated assembly line workpiece detection
- Textile machinery thread tension control
- Robotic arm end effector position feedback
Installation guidelines:
Align roller arm perpendicular to actuator movement. Lubricate pivot point
with ISO VG32 hydraulic oil monthly. Maintain 0.3-1mm gap between roller
and trigger surface for optimal sensitivity.
| Property | Property Value |
|---|---|
| sku | CM3V05 |
| Position | 3-Port 2-Position |
| Port Size | M5 |
