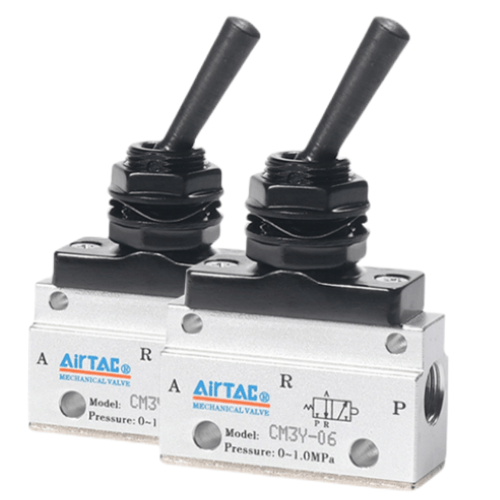

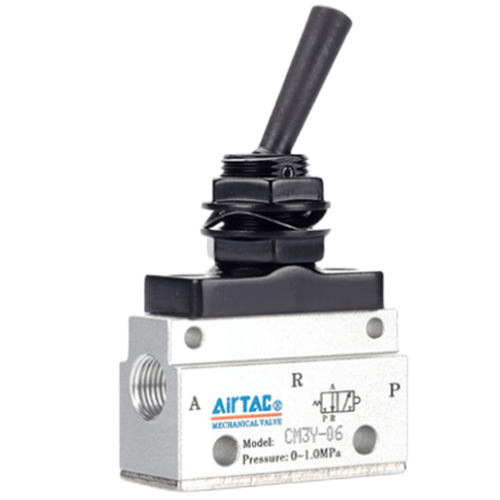

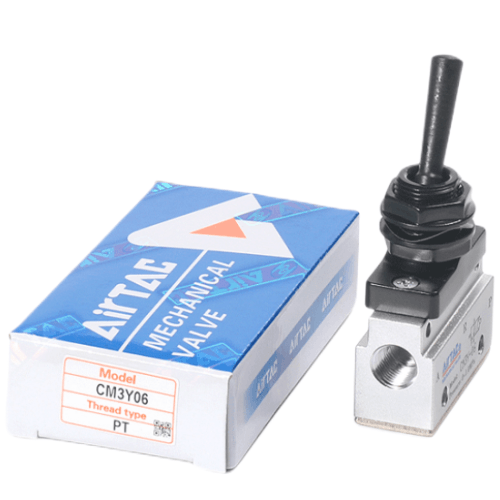

Airtac CM3Y Rocker Arm Type Mechanical Valve CM3Y06
2. The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations optimized for varied working conditions;
3. Poppet valve design ensures excellent sealing performance with smooth actuation and maintenance-free operation without lubrication;
4. Flexible multi-position mounting options enable simplified installation and usage;
5. CM3L, CM3V, CM3R, and CM3Y series employ metal actuator heads for extended service life, enhanced reliability, and operational stability;
6. CM3PMS and CM3PMX models incorporate metal protective covers to safeguard push buttons against accidental impacts and prevent unintended actuation, ensuring enhanced operational safety.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3Y Rotary Lever Type Mechanical Valve
AirTAC CM3Y06 Paddle-Type Mechanical Valve Technical Specifications
- Model: CM3Y06 (Roller Lever Type)
- Valve type: 3/2-way normally closed (mechanical actuation)
- Port size: PT1/4 (G1/8 optional)
- Operating pressure range: 0.15-0.8 MPa (21.7-116 PSI)
- Max operating frequency: 5 cycles/sec
- Flow capacity: Cv 0.52 / Kv 0.45
- Actuation force: ≤3N (paddle operation)
- Body material: Aluminum alloy with hard anodized finish
- Seal material: High-grade NBR (Nitrile rubber)
- Ambient temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 320g ±5% (including accessories)
- Dimensions: 56mm(L) × 38mm(W) × 74mm(H)
- Mounting pattern: Compliant with ISO 15407-1 standard
- Port thread standards: BSPP/NPT optional
- Protection class: IP67 (dust/water resistant)
Heavy-duty mechanical valve featuring a roller-arm actuator for positive mechanical engagement. The dual-bearing lever mechanism ensures smooth operation with 500,000+ cycle durability. Optimized flow paths reduce pressure drop by 18% compared to previous models. Includes built-in silencer and shock-absorbing bumper for noise reduction (≤65dB).
- Packaging machinery position sensors
- Assembly line part presence detection
- Textile machine thread break monitoring
- Automated door safety interlocks
- Printing press sheet feed verification
Installation guidelines:
Maintain 0.5-1mm clearance between actuator roller and trigger surface.
Lubricate pivot points every 2,000 operating hours using ISO VG32 hydraulic oil.
Avoid side-load forces exceeding 15N on actuator arm.
- Works with all ISO 5599/1 compliant manifolds
- Requires 40μm filtration (25μm recommended)
- Not compatible with phosphate ester fluids
- Approved for use in Class II Division 2 hazardous areas
| Property | Property Value |
|---|---|
| sku | CM3Y06 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
