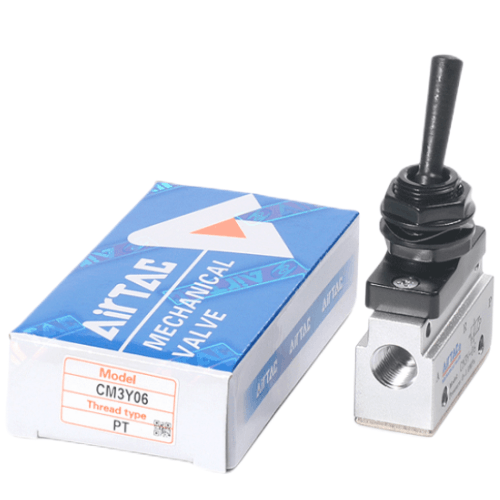

Airtac CM3Y Rocker Arm Type Mechanical Valve CM3Y06-P1
2. The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations optimized for varied working conditions;
3. Poppet valve design ensures excellent sealing performance with smooth actuation and maintenance-free operation without lubrication;
4. Flexible multi-position mounting options enable simplified installation and usage;
5. CM3L, CM3V, CM3R, and CM3Y series employ metal actuator heads for extended service life, enhanced reliability, and operational stability;
6. CM3PMS and CM3PMX models incorporate metal protective covers to safeguard push buttons against accidental impacts and prevent unintended actuation, ensuring enhanced operational safety.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3Y Rotary Lever Type Mechanical Valve

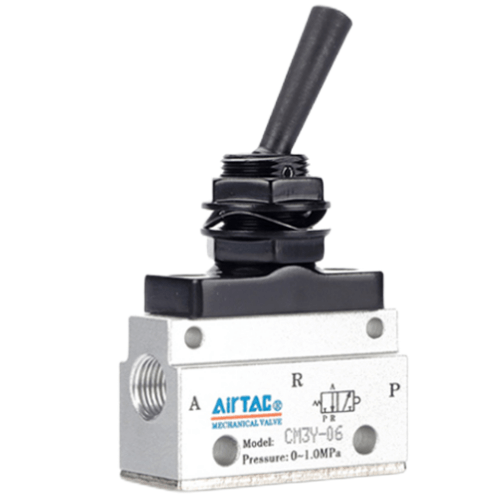

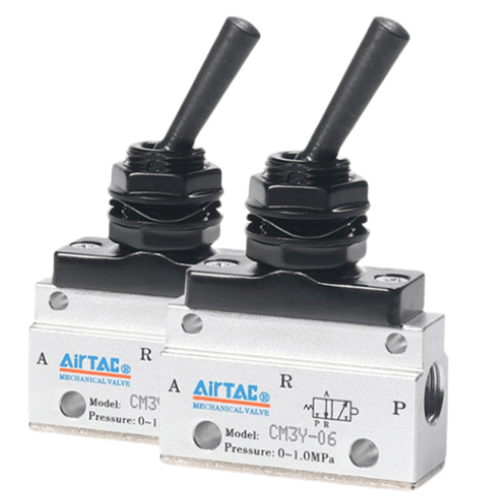

AirTAC CM3Y Rocker-Type Mechanical Valve CM3Y06-P1 Technical Details
- Model: CM3Y06-P1
- Type: 3-position (Lever-Operated) / 3-way (Closed Center)
- Port size: G1/4 (ISO228/1 standard)
- Operating pressure: 0.2–0.8 MPa (29–116 PSI)
- Max flow rate: 750 L/min (ANR)
- Operating force: ≤3.5N (Lever actuation)
- Body material: Anodized aluminum alloy (A6063)
- Seal material: NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃ (non-freezing)
- Weight: 320g ±5% (without accessories)
- Dimensions: 60mm(L) × 34mm(W) × 53mm(H)
- Mounting: Direct piping or sub-base (ISO 5599-1 compatible)
- Port thread depth: 12mm (minimum engagement)
- Cycle life: ≥500,000 operations
Manual override valve with positive center shut-off, featuring tactile feedback lever operation. The dual-bearing pivot design ensures smooth actuation and precise flow control. Includes dust-resistant boot seal (IP54 rating when installed). Compatible with ISO VG32 hydraulic oil or general-purpose air (lubricated/non-lubricated).
- Emergency stop circuits in production lines
- Pneumatic fixture clamping control
- Material handling system diverters
- Test bench pressure regulation
- Educational training equipment
- Textile machinery air flow control
Installation guidelines:
Mount in vibration-free locations using M5 mounting screws (max torque 2.5N·m).
Maintain 15° maximum angular deviation from vertical axis.
Pre-install 40μm filter for oil-free systems.
