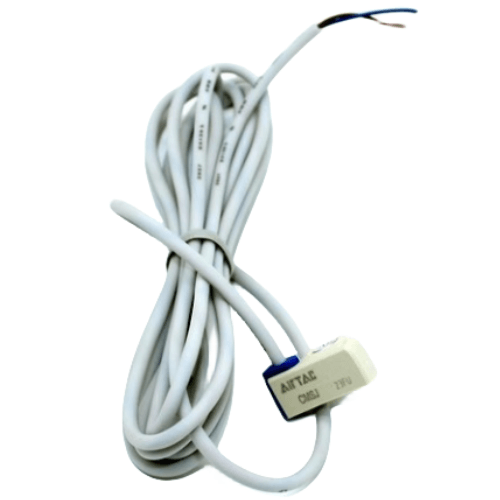

Airtac CMSJ Reed-type Sensor CMSJ-C08
$14.18
Regular price
$21.68
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CMSJ-C08
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. CMSJ Reed Sensors utilize permanent magnets or electromagnets to generate magnetic fields that actuate integrated reed switches within the sensor assembly.
2. This deceptively simple mechanism provides robust circuit control for diverse industrial and commercial equipment applications through reliable reed contact operation.
Installation guidelines:
Mount using M3 screws (max torque 0.5Nm) with sensor face parallel to magnet plane.
Maintain 0.5-1mm air gap between sensor and cylinder body. Avoid ferrous metal
debris accumulation near detection zone. For multi-sensor setups, maintain
≥20mm spacing between units to prevent magnetic interference.
2. This deceptively simple mechanism provides robust circuit control for diverse industrial and commercial equipment applications through reliable reed contact operation.
AirTAC CMSJ-C08 Reed Sensor Technical Details
- Model: CMSJ-C08
- Type: Non-contact magnetic reed sensor
- Output configuration: NPN/PNP NO/NC variants available
- Supply voltage: DC 10-30V (±10% ripple)
- Current consumption: ≤15mA
- Max load current: 200mA
- Response time: ≤1ms
- Detection distance: 8mm (from sensor face to magnet surface)
- Housing material: Glass-filled PBT (UL94 V-0 rated)
- Operating temperature: -25℃ to +70℃
- Protection rating: IP67 (IEC 60529)
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
- Shock resistance: 1000m/s² (3-axes)
- Connection: 2m PVC cable (standard) / M8 connector (optional)
- Weight: 85g ±3%
- Dimensions: 30mm(L) × 18mm(W) × 10mm(H)
Compact magnetic proximity switch with gold-plated reed contacts for reliable position detection in pneumatic cylinders. Features reverse polarity protection and short-circuit prevention circuitry. The dual-color LED (red/green) provides visual status feedback for quick diagnostics.
Implementation Scenarios:
- Pneumatic cylinder end-position detection in packaging lines
- Safety interlock systems for machine guarding
- Elevator car leveling position feedback
- Automated warehouse shuttle position verification
- Hydraulic press stroke limit control
Installation guidelines:
Mount using M3 screws (max torque 0.5Nm) with sensor face parallel to magnet plane.
Maintain 0.5-1mm air gap between sensor and cylinder body. Avoid ferrous metal
debris accumulation near detection zone. For multi-sensor setups, maintain
≥20mm spacing between units to prevent magnetic interference.
⚠️ Critical notes:
- Not compatible with alternating magnetic fields
- Shield cable when installed near high-frequency equipment
- For high-vibration environments, use vibration-damping mounts
