Airtac CPV15S Integrated Valve Manifold CPV15S14F
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、Features modular design with flexible expandability, allowing arbitrary combination and extension of connected solenoid valves. Optional blanking plates included for configuration flexibility.
Category: Solenoid Valve Manifold Base , Brand: AirTAC , Series: CPV15S

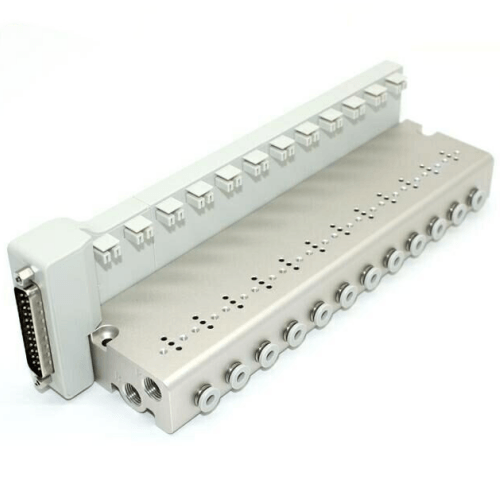

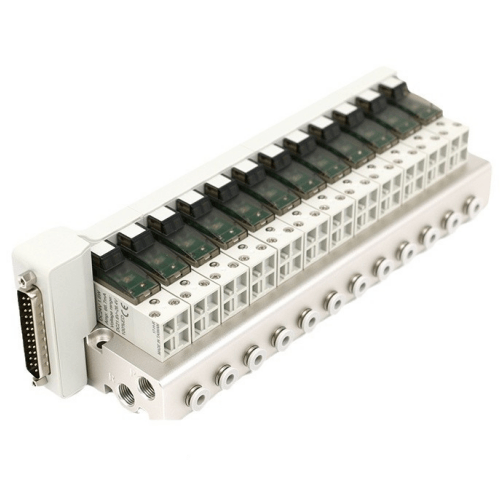

AirTAC CPV15S14F Integrated Valve Manifold Base Specifications
- Model: CPV15S14F (CPV15S series)
- Type: 14-station modular manifold base
- Port size: M5 (G1/8 equivalent flow)
- Operating pressure: 0.2–1.0 MPa
- Compatible valves: CPV10/15/20 series solenoid valves
- Material: Anodized aluminum alloy (black oxidation)
- Seal type: NBR rubber seals
- Temperature range: -10℃ to 80℃
- Surface roughness: Ra ≤3.2μm
- Mounting: DIN rail (TS35) or panel screw mounting
- Weight: 480g ±5%
- Dimensions: 120mm(L) × 40mm(W) × 30mm(H)
- Port pitch: 10mm center-to-center spacing
- Max lateral load: 15N per station
- Certification: ISO 15407-1, RoHS compliant
Multi-channel manifold base with precision-machined air passages for centralized pneumatic control systems. Features anti-vibration design with integrated silencer grooves and leak-proof sealing surfaces. The staggered port arrangement enables high-density valve clustering while maintaining 180° rotatable port orientation flexibility.
- Automated assembly line multi-actuator control
- Plastic injection molding machine valve clusters
- Semiconductor handling equipment manifold systems
- Textile machinery pneumatic circuit integration
- Automotive test bench pneumatic distribution
Installation guidelines:
Use torque-controlled tightening (1.2-1.5N·m) with included M5×8 screws.
Apply sealant (LOCTITE 545) on end plate threads. Maintain 50mm clearance
below base for tubing access. Perform pressure decay test after assembly.
