Airtac CPV15S Integrated Valve Manifold CPV15S16F
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、Features modular design with flexible expandability, allowing arbitrary combination and extension of connected solenoid valves. Optional blanking plates included for configuration flexibility.
Category: Solenoid Valve Manifold Base , Brand: AirTAC , Series: CPV15S

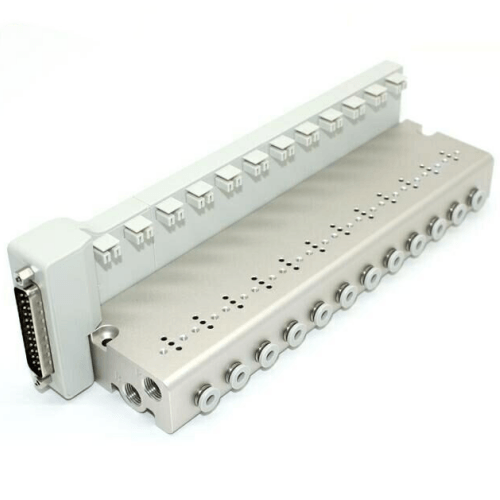

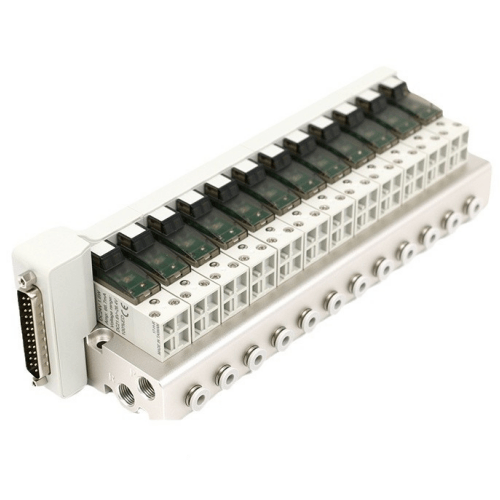

AirTAC CPV15S Integrated Valve Base CPV15S16F Technical Details
- Model: CPV15S16F
- Type: Modular manifold base for solenoid valve integration
- Port configuration: 16 stations (ISO 5599-1 standard)
- Material: Aluminum alloy (ADC12) with black anodized finish
- Port thread size: G1/8 (ISO228-1 compliant)
- Operating pressure range: 0.1–0.8 MPa
- Max working pressure: 1.0 MPa
- Temperature range: -20℃ to 80℃
- Installation torque: 0.5 N·m (for M5 mounting screws)
- Surface roughness: Ra ≤3.2μm (sealing surface)
- Weight: ~800g (excluding valves)
- Dimensions: 200mm(L) × 40mm(W) × 40mm(H)
- Port spacing: 15mm center-to-center
- Compatible valves: CPV10/15/20 series solenoid valves
High-density modular base designed for centralized pneumatic circuit control systems. Features multi-channel parallel flow paths with optimized internal bore geometry (Φ4.5mm main passage) for minimal pressure drop. Includes built-in silencer grooves and standardized mounting interface for flexible valve combinations. Rated for 1 million+ duty cycles.
- Multi-axis pneumatic actuator control in assembly lines
- Packaging machinery with sequential valve operations
- Industrial robot end-effector tooling stations
- Textile machinery air distribution systems
- Semiconductor handling equipment clusters
Installation protocol:
Use torque-controlled screwdriver for even mounting pressure.
Apply sealant (LOCTITE 542) on end plate threads.
Perform air tightness test at 0.6 MPa for 5 minutes post-installation.
| Property | Property Value |
|---|---|
| sku | CPV15S16F |
