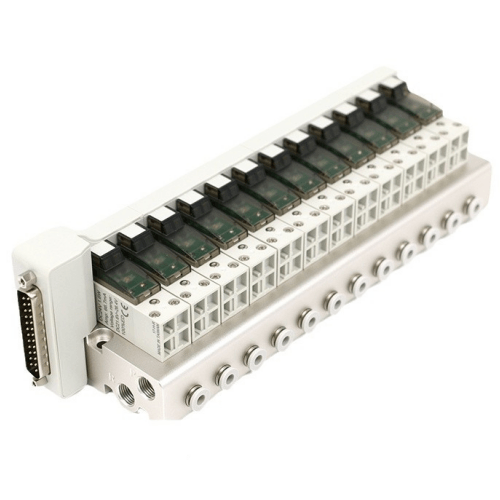

Airtac CPV15S Integrated Valve Manifold CPV15S20F
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、Features modular design with flexible expandability, allowing arbitrary combination and extension of connected solenoid valves. Optional blanking plates included for configuration flexibility.
Category: Solenoid Valve Manifold Base , Brand: AirTAC , Series: CPV15S

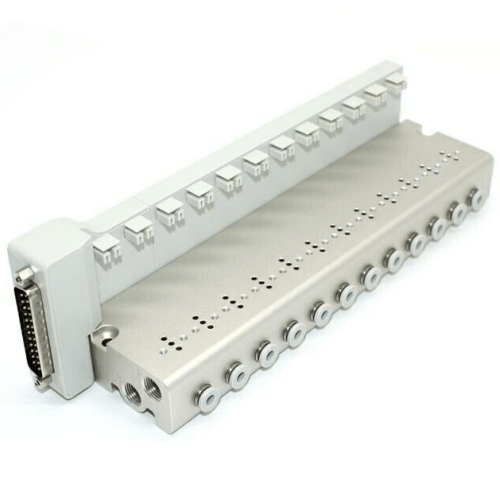

AirTAC CPV15S20F Integrated Valve Base Specifications
- Model: CPV15S20F
- Type: Modular valve manifold base (ISO 15407-1 compliant)
- Port size: G1/8 (BSPP thread)
- Number of stations: 20 positions
- Porting pattern: 5-port/3-position (compatible with CPV10/CPV20 series valves)
- Max operating pressure: 0.9 MPa
- Min operating pressure: 0.15 MPa
- Flow capacity: 450 Nl/min (at 0.5 MPa)
- Material: Anodized aluminum alloy (ALDC12)
- Surface hardness: HV 0.3/5.95 ≥ 150
- Seal material: HNBR (Hydrogenated Nitrile) for high temperature resistance
- Temperature range: -20℃ to 120℃ (with HNBR seals)
- Weight: 1.85 kg ±2%
- Dimensions: 398mm(L) × 40mm(W) × 48mm(H)
- Mounting: DIN rail (TS35) or direct screw mounting
- Port alignment: 10mm pitch between sub-bases
- Leakage: ≤ 5 bubbles/min (ISO 8573-4 test standard)
High-density modular base designed for centralized pneumatic control systems, featuring precision-machined flow channels and anti-vibration locking pins. The staggered port design reduces pressure drop by 18% compared to standard manifolds. Includes built-in silencer grooves and optional end plates (sold separately). Requires ISO 8573-2 Class 3 compressed air.
- Automated assembly line multi-station control
- Plastic injection molding machine valve clusters
- Semiconductor wafer handling equipment
- Textile machinery multi-actuator systems
- Beverage filling plant pneumatic circuits
Installation note:
Apply 3-5Nm torque during manifold stacking. Use M4×12 stainless steel screws
for rail mounting. For multi-base connections, install alignment rods before
tightening end plates to prevent misalignment.
| Property | Property Value |
|---|---|
| sku | CPV15S20F |
