Airtac CPV15S Integrated Valve Manifold CPV15S4F
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、Features modular design with flexible expandability, allowing arbitrary combination and extension of connected solenoid valves. Optional blanking plates included for configuration flexibility.
Category: Solenoid Valve Manifold Base , Brand: AirTAC , Series: CPV15S

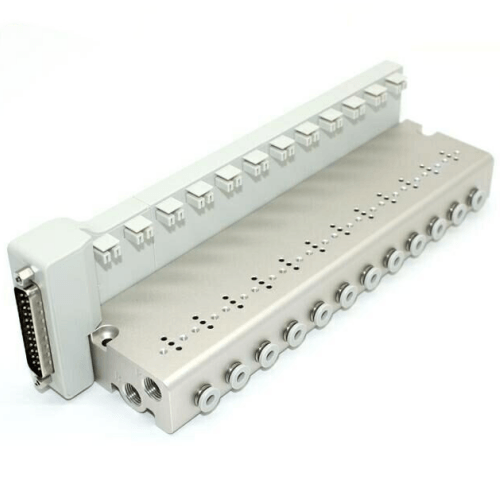

AirTAC CPV15S4F Integrated Valve Base Specifications
- Model: CPV15S4F
- Type: Modular aluminum manifold base for 4-valve integration
- Port configuration: 4 stations with 1/4" (PT) ports
- Thread standard: G1/4 (BSPP) / NPT1/4 optional
- Operating pressure: 0.15–1.0 MPa (21.7–145 psi)
- Max flow rate: 850 L/min (ANR)
- Surface hardness: HV 120±10 (anodized treatment)
- Seal material: HNBR (Hydrogenated Nitrile) for enhanced chemical resistance
- Temperature range: -20℃ to 80℃ (non-freezing conditions)
- Weight: 520g ±3% (bare base without valves)
- Dimensions: 200mm(L) × 40mm(W) × 32mm(H) (per station module)
- End plate thickness: 8mm (aluminum alloy)
- Mounting torque: 1.5–2.0 N·m for valve installation
- Compatibility: CPV10/15/20 series valves
High-density modular base featuring precision-machined air passages with mirror-finished surfaces (Ra≤1.6μm) to minimize pressure loss. The staggered port design enables 360° manifold assembly flexibility. Includes built-in silencer pads and auto-exhaust channels for multi-valve systems. Meets ISO 15407-1 standards for industrial durability.
- Multi-axis robotic end effectors requiring compact valve clusters
- Plastic injection molding machine core-pull sequences
- Automated assembly line pneumatic logic control
- Semiconductor wafer handling vacuum/pressure systems
- Packaging machinery with timed pneumatic sequences
Installation protocol:
Use torque wrench for even valve mounting. Apply Loctite 5452 thread sealant on NPT ports.
Perform 1.5× working pressure leak test after assembly. Maximum stack length: 10 modules.
