Airtac CPV15S Integrated Valve Manifold CPV15S6F
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、Features modular design with flexible expandability, allowing arbitrary combination and extension of connected solenoid valves. Optional blanking plates included for configuration flexibility.
Category: Solenoid Valve Manifold Base , Brand: AirTAC , Series: CPV15S

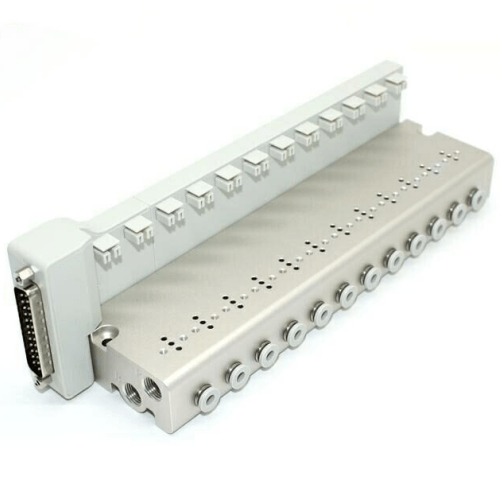

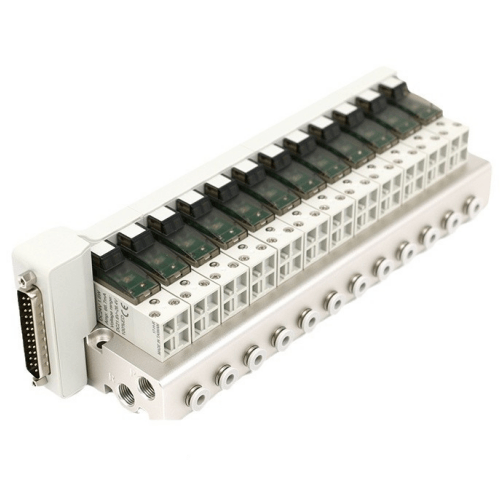

AirTAC CPV15S6F Integrated Valve Base Technical Specifications
- Model: CPV15S6F (CPV15S series modular base)
- Valve type: Multi-station manifold for solenoid valve integration
- Port configuration: 6 stations (1 inlet + 5 outlets)
- Thread specification: G1/8 (ISO228 standard)
- Max operating pressure: 1.0 MPa
- Flow capacity: 750 L/min (ANR)
- Material: Aircraft-grade aluminum alloy (anodized surface)
- Seal type: Dual-layer NBR seals with dust wipers
- Temperature resistance: -10℃ to 80℃
- Mounting pattern: ISO 15407-1 compliant
- Weight: 980g ±2% (without valves)
- Dimensions: 156mm(L) × 32mm(W) × 45mm(H)
- Surface hardness: HV 0.3/15 ≥ 350
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Modular aluminum manifold base designed for building centralized pneumatic control systems. Features precision-machined flow channels with optimized pressure drop characteristics. The staggered port design allows tool-free valve mounting and supports up to 6 valves in 32mm width space. Integrated O-ring grooves ensure leak-free connections even under pulsating pressure conditions.
- Multi-axis robotic end effectors
- Beverage filling line valve clusters
- Pharmaceutical blister packaging machines
- Semiconductor wafer handling systems
- Automotive tire assembly stations
Installation protocol:
Use torque-controlled wrench (recommended 3.5-4.2 N·m) for manifold stacking.
Apply silicone-free lubricant on seals. Requires periodic inspection every
2,000 operating hours for particle accumulation in exhaust chambers.
