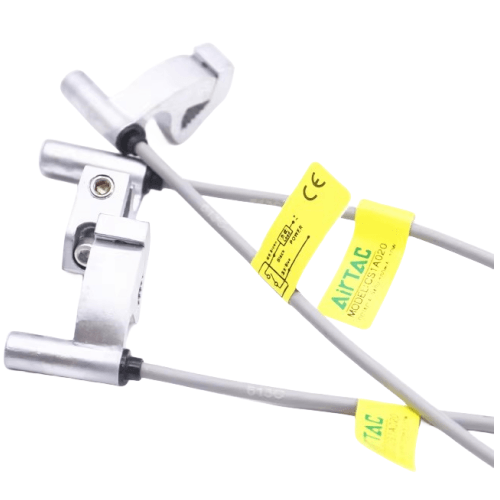

Airtac CS1A Reed Sensor CS1A100
2. This deceptively simple design provides robust circuit control for diverse industrial and commercial applications, ensuring reliable switching performance in electrical systems.
AirTAC CS1A100 Reed Switch Sensor Technical Specifications
- Model: CS1A100
- Type: Non-contact magnetic proximity sensor
- Sensing method: Reed switch with permanent magnet activation
- Rated voltage: DC 5-240V (±10% ripple)
- Current consumption: ≤8mA (DC24V)
- Output type: 1NO (Normally Open) / NPN or PNP variants available
- Cable length: 2m PVC shielded cable (standard)
- Housing material: Nickel-plated brass with PBT resin
- Protection rating: IP67 (water & dust resistant)
- Temperature range: -25℃ to +70℃ (operation), -40℃ to +85℃ (storage)
- Repeat accuracy: ±0.5mm
- Response frequency: ≤3000Hz
- Electrical life: ≥5×10⁶ operations
- Mounting style: T-slot groove installation (compatible with ISO cylinder grooves)
- Cable type: 4-core 0.14mm² (28AWG) with PVC jacket
- Shock resistance: 1000m/s² (3 times each in XYZ axes)
- Vibration resistance: 10-55Hz double amplitude 1.5mm
- Weight: 35g ±2g (including cable)
- Dimensions: 60mm(L) × 10mm(W) × 15mm(H)
Compact magnetic proximity sensor designed for precise cylinder position detection in harsh industrial environments. Features corrosion-resistant construction with gold-plated reed contacts for reliable switching. The polarized design prevents false triggering from external magnetic fields. Optimized for ISO standard pneumatic cylinder grooves with adjustable sensing position along T-slot.
- Pneumatic cylinder end position detection
- Automated assembly line sequencing
- Packaging machinery safety interlocks
- Injection molding machine clamp position sensing
- Conveyor system object detection
- Hydraulic press stroke limit control
Installation guidelines:
Maintain 0.5-1mm air gap between sensor and cylinder surface. Align sensor axis with magnet center within ±2mm.
For multi-sensor installations, maintain ≥30mm spacing between adjacent units. Use shielded conduit in high EMI environments.
