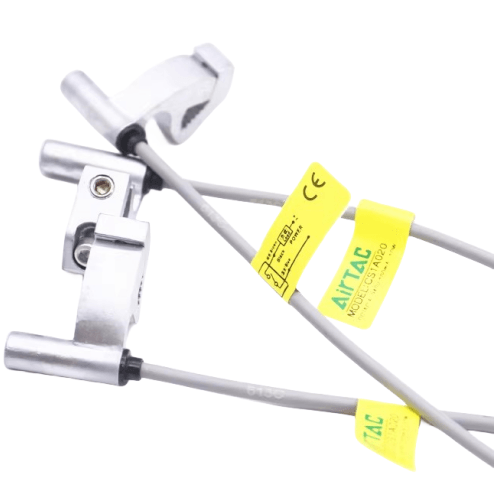

Airtac CS1A Reed Sensor CS1AC08
2. This deceptively simple design provides robust circuit control for diverse industrial and commercial applications, ensuring reliable switching performance in electrical systems.
AirTAC CS1A Reed Sensor CS1AC08 Technical Specifications
- Model: CS1AC08
- Sensor type: Reed switch (non-contact magnetic sensing)
- Detection distance: 8mm ±10%
- Output configuration: NPN normally open (NO)
- Supply voltage: DC 10-30V (±10% ripple)
- Current consumption: ≤15mA
- Leakage current: ≤0.01mA
- Response time: ≤1ms
- Operating frequency: 500Hz max
- Protection class: IP67 (dust/water resistant)
- Housing material: Glass-filled PBT (UL94 V-0)
- Contact material: Rhodium-plated contacts
- Operating temperature: -25℃ to +70℃
- Storage temperature: -40℃ to +85℃
- Vibration resistance: 10-55Hz, 1.5mm double amplitude
- Shock resistance: 1000m/s² (3 times each axis)
- Connection: 2m PVC cable (3-core 0.2mm²)
- Weight: 52g ±3%
- Dimensions: 18mm(W) × 18mm(D) × 50mm(H)
- Certifications: CE, RoHS, REACH compliant
High-precision magnetic proximity sensor with industrial-grade durability, featuring dual-chamber epoxy encapsulation for moisture resistance. The gold-plated reed switch ensures >10⁷ operations with <200mΩ contact resistance. Optimized for cylinder position detection with programmable magnets.
- Pneumatic cylinder end position detection
- Automated packaging machine safety interlocks
- Injection molding machine clamp position sensing
- Conveyor system object counting
- Hydraulic press stroke limit control
Installation guidelines:
Mount parallel to cylinder axis with 0.5-2mm air gap between sensor face and magnet.
Avoid ferrous metal debris accumulation. For optimal performance in high-vibration
environments, use M3 screws with 0.3-0.5Nm torque and anti-loosening washers.
