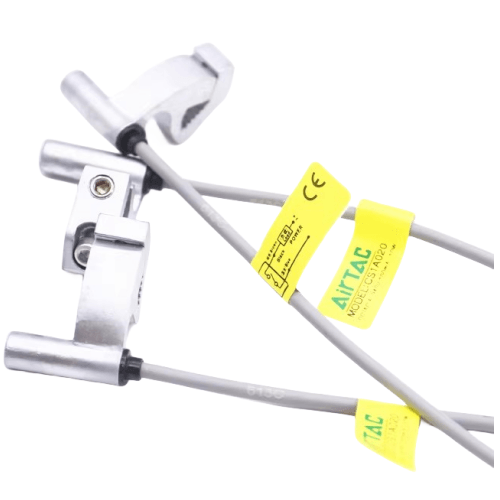

Airtac CS1A Reed Sensor CS1AX020
2. This deceptively simple design provides robust circuit control for diverse industrial and commercial applications, ensuring reliable switching performance in electrical systems.
AirTAC CS1A Reed Sensor CS1AX020 Technical Specifications
- Model: CS1AX020
- Type: Magnetic reed proximity sensor (non-contact)
- Detection distance: 2mm ±10%
- Output configuration: NPN/PNP selectable (NO+NC)
- Supply voltage: DC 10-30V (±10% ripple)
- Output current: ≤200mA
- Voltage drop: ≤2.5V
- Response time: ≤1ms
- Repeat accuracy: ±0.1mm
- Operating temperature: -25℃ to 70℃
- Storage temperature: -40℃ to 85℃
- Protection rating: IP67 (IEC 60529)
- Housing material: PBT (Polybutylene Terephthalate)
- Contact material: AgCdO (Silver Cadmium Oxide)
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
- Shock resistance: 1000m/s² (3 axes)
- Connection type: 2m PVC cable (M8 connector optional)
- Weight: 50g ±3%
- Dimensions: 18mm(W) × 18mm(D) × 55mm(H)
Compact magnetic proximity sensor with dual NPN/PNP output configuration, designed for precise position detection in pneumatic systems. Features gold-plated reed contacts for enhanced durability (1×10⁷ operations) and built-in surge protection. The oil-resistant PBT housing withstands industrial contaminants while maintaining IP67 environmental protection.
- Cylinder piston position feedback in automation lines
- Tooling machine safety interlocks
- Packaging equipment cycle counting
- Injection molding machine clamp detection
- Automotive assembly jig positioning
- Food processing equipment door status monitoring
Installation guidelines:
Maintain 0.5-1.5mm air gap between sensor face and actuator.
Avoid mounting near strong electromagnetic fields (>80kA/m).
For optimal performance, align sensor axis within ±5° of magnet movement path.
