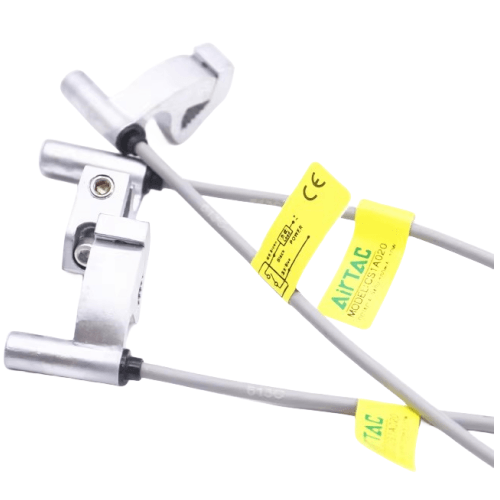

Airtac CS1A Reed Sensor CS1AX030
2. This deceptively simple design provides robust circuit control for diverse industrial and commercial applications, ensuring reliable switching performance in electrical systems.
AirTAC CS1A Reed Sensor CS1AX030 Technical Specifications
- Model: CS1AX030
- Type: Magnetic reed proximity sensor (NO/NC selectable)
- Operating voltage: DC5-30V (±10% pulsating ratio)
- Output type: NPN or PNP transistor output (specify when ordering)
- Sensing distance: 3mm ±10% (from magnet surface)
- Housing material: Nickel-plated brass with PBT resin coating
- Protection rating: IP67 (IEC standard)
- Temperature range: -25℃ to +70℃ (operation), -40℃ to +80℃ (storage)
- Connection type: 2m PVC cable (standard) / M8 connector (optional)
- Cable specifications: 4-core 0.2mm² (28AWG) shielded
- Response frequency: ≤100Hz
- Max. current consumption: ≤15mA
- Switch capacity: ≤100mA
- Mechanical durability: 10⁸ operations
- Weight: 45g ±3% (sensor body only)
- Dimensions: 18mm(W) × 76mm(L) × 8.5mm(H)
Compact magnetic proximity sensor with dual-output configuration, designed for precise cylinder position detection in pneumatic systems. Features anti-corrosion coating and reverse polarity protection. The shielded cable design minimizes EMI interference in electrically noisy environments. Requires compatible magnet (standard with AirTAC cylinders) with ≥50mT residual induction.
- Pneumatic cylinder end position detection
- Automated packaging machine safety interlocks
- Injection molding machine clamp position feedback
- Conveyor system object presence verification
- Automotive welding robot tooling position confirmation
Installation guidance:
Mount parallel to cylinder axis with ≤0.5mm alignment tolerance. Maintain 3-5mm air gap between sensor face and magnet. Avoid installation near strong magnetic sources (>200mT). For sliding applications, use shock-absorbing brackets (sold separately).
| Property | Property Value |
|---|---|
| sku | CS1AX030 |
