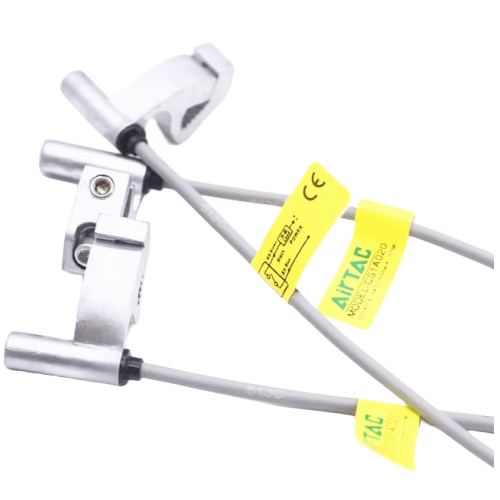

Airtac CS1A Reed Sensor CS1AXC08
2. This deceptively simple design provides robust circuit control for diverse industrial and commercial applications, ensuring reliable switching performance in electrical systems.
AirTAC CS1A Magnetic Reed Sensor CS1AXC08 Technical Details
- Model: CS1AXC08
- Type: Non-contact magnetic proximity sensor
- Sensing method: Reed switch (NO contact)
- Detection distance: 8mm ±10%
- Operating voltage: 10-30VDC (ripple ≤10%)
- Current consumption: ≤15mA
- Output type: 2-wire DC (NPN compatible)
- Leakage current: ≤1.5mA
- Response frequency: ≤100Hz
- Hysteresis: ≤15% of detection distance
- Protection class: IP67 (IEC60529)
- Insulation resistance: ≥50MΩ (500VDC)
- Dielectric strength: 1500VAC for 1min
- Vibration resistance: 10-55Hz @1.5mm amplitude
- Shock resistance: 1000m/s² (3 times each axis)
- Ambient temperature: -25℃ to +70℃
- Housing material: Glass-filled PBT (UL94 V-0)
- Cable specification: 2m PUR cable (Ø4.5mm)
- Weight: 50g ±5% (including cable)
- Dimensions: 58mm(L) × 15mm(W) × 15mm(H)
High-precision magnetic field detection sensor with hermetically sealed reed switch, featuring overcurrent protection and reverse polarity safeguard. The brass nickel-plated sensing head provides corrosion resistance in harsh environments. Designed for pneumatic cylinder position feedback with 0.1ms response time stability.
- Pneumatic cylinder end-position detection in packaging lines
- Hydraulic press safety interlocks
- Elevator door position confirmation systems
- Automated warehouse stacker alignment
- Injection molding machine clamp position feedback
Mounting guidance:
Install with 0.5-1.5mm air gap between sensor face and cylinder,
secure using M3 screws (1.2-1.5N·m torque). Avoid mounting near
strong electromagnetic sources (>80kA/m). Perform annual reed
contact resistance check under load.
