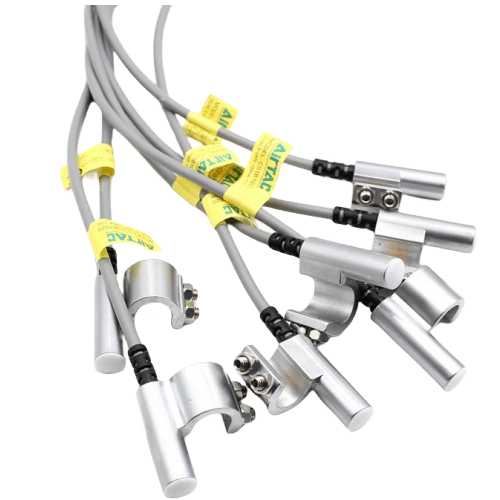

Airtac CS1B Reed Sensor CS1B3030
$12.99
Regular price
$20.49
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CS1B3030
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The reed sensor operates by utilizing a magnet or electromagnet to generate a magnetic field that actuates the hermetically sealed reed switch within the sensor assembly.
2. This deceptively simple mechanism provides reliable circuit control through contact closure, demonstrating exceptional durability and stability across diverse industrial automation systems and commercial equipment applications.
Installation note:
Maintain 0.5-1mm gap between sensor face and cylinder surface.
Use non-ferromagnetic mounting hardware to prevent interference.
For optimal performance, clean magnet surface monthly in high-iron-dust environments.
2. This deceptively simple mechanism provides reliable circuit control through contact closure, demonstrating exceptional durability and stability across diverse industrial automation systems and commercial equipment applications.
AirTAC CS1B3030 Reed Sensor Technical Details
- Model: CS1B3030
- Sensor type: Magnetic reed switch (non-contact)
- Output configuration: NPN normally open (NO)
- Operating voltage: 5-30V DC (±10% ripple)
- Current consumption: ≤15mA @ 24V DC
- Detection distance: 3mm ±10% (from magnet surface)
- Repeat accuracy: ±0.5mm
- Response frequency: ≤300Hz
- Protection rating: IP67 (dust/water resistant)
- Temperature range: -25℃ to +80℃
- Housing material: PBT + glass fiber (UL94 V-0)
- Cable length: 2m (4-core shielded 0.18mm²)
- Connection type: M8 4-pin quick disconnect
- Max pressure resistance: 1MPa (when installed)
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
- Shock resistance: 1000m/s² (3 axes)
- Weight: 28g ±2g
- Dimensions: 30mm(L) × 15mm(W) × 6.5mm(H)
Compact magnetic proximity sensor with gold-plated reed contacts for reliable position detection in pneumatic cylinders. Features reverse polarity protection and surge suppression. The anodized aluminum alloy bracket allows adjustable mounting with 2x M3 screws (included).
Typical Applications:
- Pneumatic cylinder end position detection
- Conveyor belt object presence sensing
- Packaging machine safety interlocks
- Injection molding machine clamp position feedback
- Automated assembly line sequencing
Installation note:
Maintain 0.5-1mm gap between sensor face and cylinder surface.
Use non-ferromagnetic mounting hardware to prevent interference.
For optimal performance, clean magnet surface monthly in high-iron-dust environments.
| Property | Property Value |
|---|---|
| sku | CS1B3030 |
