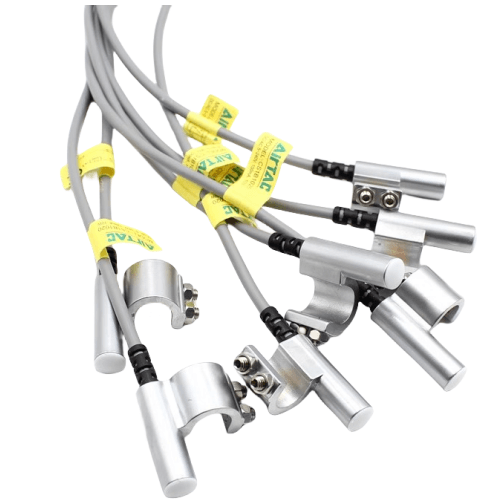

Airtac CS1B Reed Sensor CS1B3050
2. This deceptively simple mechanism provides reliable circuit control through contact closure, demonstrating exceptional durability and stability across diverse industrial automation systems and commercial equipment applications.
AirTAC CS1B Reed Switch Sensor CS1B3050 Technical Specifications
- Model: CS1B3050
- Type: Non-contact magnetic proximity sensor
- Sensing method: Reed switch with permanent magnet activation
- Output type: 2-wire normally open (NO)
- Voltage range: DC 5-240V (AC compatible)
- Max current: 200mA
- Contact capacity: 10W
- Protection rating: IP67 (dust/water resistant)
- Temperature range: -25℃ to +70℃
- Housing material: PBT resin (UL94 V-0 rated)
- Cable length: 2m standard (4-pin 28AWG shielded cable)
- Hysteresis: ≤15% of sensing distance
- Repeat accuracy: ±0.5mm
- Response time: ≤1ms
- Weight: 30g ±2g
- Dimensions: 18mm(W) × 10mm(D) × 40mm(H)
Compact magnetic proximity detector featuring hermetically sealed contacts resistant to arc degradation. The contactless design ensures 10 million+ operations with gold-plated reed switch contacts. Features reverse polarity protection and surge suppression for industrial environments. LED status indicator visible through semi-transparent housing.
- Cylinder position feedback in automation lines
- Overhead crane limit switches
- Injection molding machine safety interlocks
- Conveyor belt material presence detection
- Hydraulic press stroke monitoring
Installation guidelines:
Mount within 3mm axial alignment of magnet centerline. Maintain 1.5x sensor diameter clearance from ferrous metals. For optimal performance in vibrating environments, use M3 screws with 0.4N·m torque and anti-vibration washers.
- Withstands 10-2000Hz vibration (10G max)
- Operates at 90% RH max (non-condensing)
- Chemical resistant to cutting oils and weak acids
| Property | Property Value |
|---|---|
| sku | CS1B3050 |
