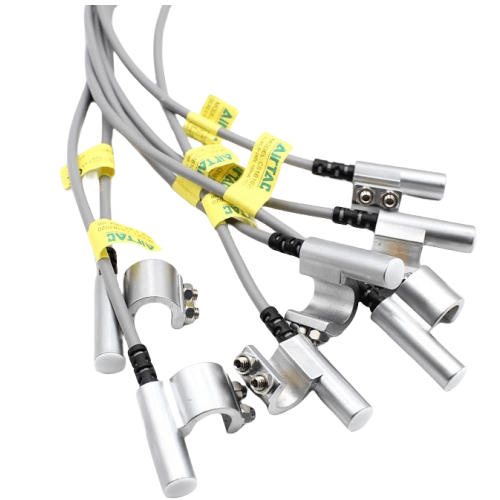

Airtac CS1B Reed Sensor CS1B6050
$16.51
Regular price
$24.01
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CS1B6050
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The reed sensor operates by utilizing a magnet or electromagnet to generate a magnetic field that actuates the hermetically sealed reed switch within the sensor assembly.
2. This deceptively simple mechanism provides reliable circuit control through contact closure, demonstrating exceptional durability and stability across diverse industrial automation systems and commercial equipment applications.
Installation guidelines:
Mount sensor parallel to cylinder axis with ≤1mm gap from magnet. Avoid ferrous metal
interference within 10mm radius. For dynamic applications, secure cables with
motion-resistant clamps at 150mm intervals.
2. This deceptively simple mechanism provides reliable circuit control through contact closure, demonstrating exceptional durability and stability across diverse industrial automation systems and commercial equipment applications.
AirTAC CS1B Reed Sensor CS1B6050 Technical Details
- Model: CS1B6050
- Type: Magnetic reed proximity sensor (cylinder-mounted)
- Detection distance: 3mm ±10% (from magnet surface)
- Output type: SPDT (1NO+1NC) contact
- Supply voltage: DC12-240V (AC compatible)
- Max load current: 200mA (resistive load)
- Response frequency: ≤100Hz
- Contact resistance: ≤100mΩ (initial)
- Insulation resistance: ≥100MΩ (500VDC megger)
- Dielectric strength: 1500VAC/1min
- Ambient temperature: -25℃ to +70℃ (no icing)
- Housing material: PBT resin (UL94 V-0)
- Cable specification: 2m PVC cable (0.3mm²×3C)
- Protection rating: IP67 (IEC standard)
- Weight: 28g ±2g (sensor only)
- Dimensions: 60mm(L) × 13mm(W) × 8.5mm(H)
Non-contact magnetic detection switch with glass-encapsulated reed contacts, engineered for precise cylinder piston position feedback. Features oil-resistant construction and wide voltage compatibility. Integrated strain relief design prevents cable damage during reciprocating motion.
Typical Applications:
- Pneumatic cylinder end position detection
- Automated assembly line sequencing
- Packaging machine clamp status monitoring
- Injection molding machine safety interlocks
- Elevator door position verification systems
Installation guidelines:
Mount sensor parallel to cylinder axis with ≤1mm gap from magnet. Avoid ferrous metal
interference within 10mm radius. For dynamic applications, secure cables with
motion-resistant clamps at 150mm intervals.
| Property | Property Value |
|---|---|
| sku | CS1B6050 |
