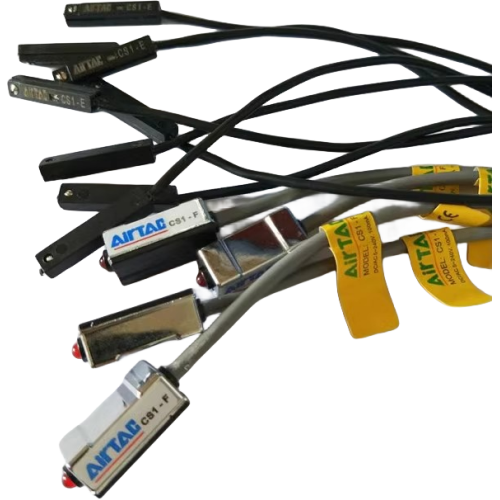

Airtac CS1F Reed Sensor CS1F020
This elegantly simple design delivers dependable circuit control across a wide range of industrial and commercial equipment applications, demonstrating exceptional reliability in electrical switching operations.
AirTAC CS1F020 Reed Proximity Sensor Technical Details
- Model: CS1F020
- Type: Non-contact magnetic reed switch
- Detection distance: 0-20mm (adjustable)
- Operating voltage: 5-240V DC/AC (wide range)
- Current capacity: Max 1A @ 250V AC
- Output type: SPDT (1NO+1NC)
- Response frequency: ≤500Hz
- Housing material: Nickel-plated brass
- Cable length: 2m standard (PVC shielded)
- Contact resistance: ≤50mΩ
- Insulation resistance: ≥100MΩ @ 500VDC
- Dielectric strength: 1500V AC/min
- Ambient temp: -25℃ to +70℃
- Protection: IP67 (submersible design)
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
- Shock resistance: 1000m/s² (3-axes)
- Weight: 32g ±1g
- Dimensions: 18mm(W) × 66mm(L) × 9.5mm(H)
- Mounting: M4 threaded (stainless steel collar)
High-precision magnetic proximity sensor with industrial-grade sealing, featuring a unique "snap-action" reed mechanism that ensures stable switching even in high-vibration environments. The through-hole design allows easy integration with pneumatic cylinders. Hermetically sealed glass tube contacts prevent oxidation.
- Cylinder position feedback in injection molding machines
- Overhead conveyor limit detection
- Liquid level sensing in food processing tanks
- Safety interlocks for automated garage doors
- Tool position verification in CNC fixtures
Installation guide:
Mount sensor parallel to magnet movement axis with ≤1mm lateral offset tolerance.
Use 22-24AWG shielded cables for EMI-sensitive environments. Test trigger position
using 0.1mm feeler gauge during calibration.
Avoid installing near:
- Strong electromagnetic fields (transformers/welding equipment)
- High-temperature surfaces (>120℃)
- Direct chemical spray areas
| Property | Property Value |
|---|---|
| sku | CS1F020 |
