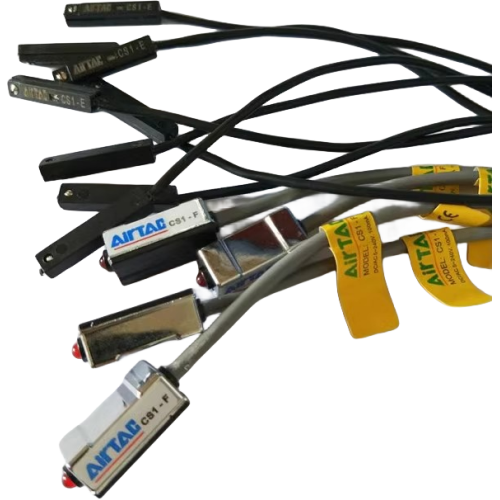

Airtac CS1F Reed Sensor CS1F030
This elegantly simple design delivers dependable circuit control across a wide range of industrial and commercial equipment applications, demonstrating exceptional reliability in electrical switching operations.
AirTAC CS1F Reed Sensor CS1F030 Technical Specifications
- Model: CS1F030
- Type: Non-contact magnetic reed sensor
- Detection method: Magnetic field actuation
- Detection distance: 10±2mm (from magnet surface)
- Operating voltage: DC 10-30V (±10% ripple)
- Output type: NPN/PNP selectable (NO/NC configurable)
- Current consumption: ≤15mA @ 24VDC
- Output current: ≤200mA (resistive load)
- Response frequency: ≤1kHz
- Protection: Reverse polarity, short-circuit, surge protection
- Housing material: PBT + Glass fiber (UL94 V-0)
- Cable length: 2m (standard), 4-conductor shielded
- Connection: M12 4-pin quick disconnect
- Ambient temperature: -25℃ to +70℃
- Protection rating: IP67 (dust/water resistant)
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
- Shock resistance: 1000m/s² (3-axes)
- Weight: 98g ±3% (including cable)
- Dimensions: 40mm(L) × 20mm(W) × 10.5mm(H)
- Certifications: CE, RoHS, REACH compliant
Compact reed sensor designed for precise position detection in pneumatic systems. Features gold-plated reed contacts for enhanced durability (100 million operations @ rated load). The IP67-rated housing withstands oil mist and coolant exposure. Integrated status LED indicates power/activation state.
- Mounts via M3 screws (torque 0.5N·m max) on T-slot cylinders
- Typical uses:
- Cylinder piston position feedback
- Conveyor belt object detection
- Packaging machine safety interlocks
- Hydraulic press limit switching
- Optimized for AirTAC SDA/SI series cylinders
- Maintain 5mm clearance from adjacent metal surfaces
- Use neodymium magnets (≥50mT) for best performance
- For high-vibration environments, apply thread-locker to mounting screws
- Route cables separately from power lines (>10cm spacing)
| Property | Property Value |
|---|---|
| sku | CS1F030 |
